MCM Arches

MCM Arches

Regular price $14.99 USD
Regular price Sale price $14.99 USD
Sale
Select Size:

Sold Out (this item will not be restocked)

Description

Cable Arches (4 options available)

    • Small - 5 arch pack
    • Medium - 3 arch pack
    • Large - 2 arch pack
    • X-Large - 1 arch pack

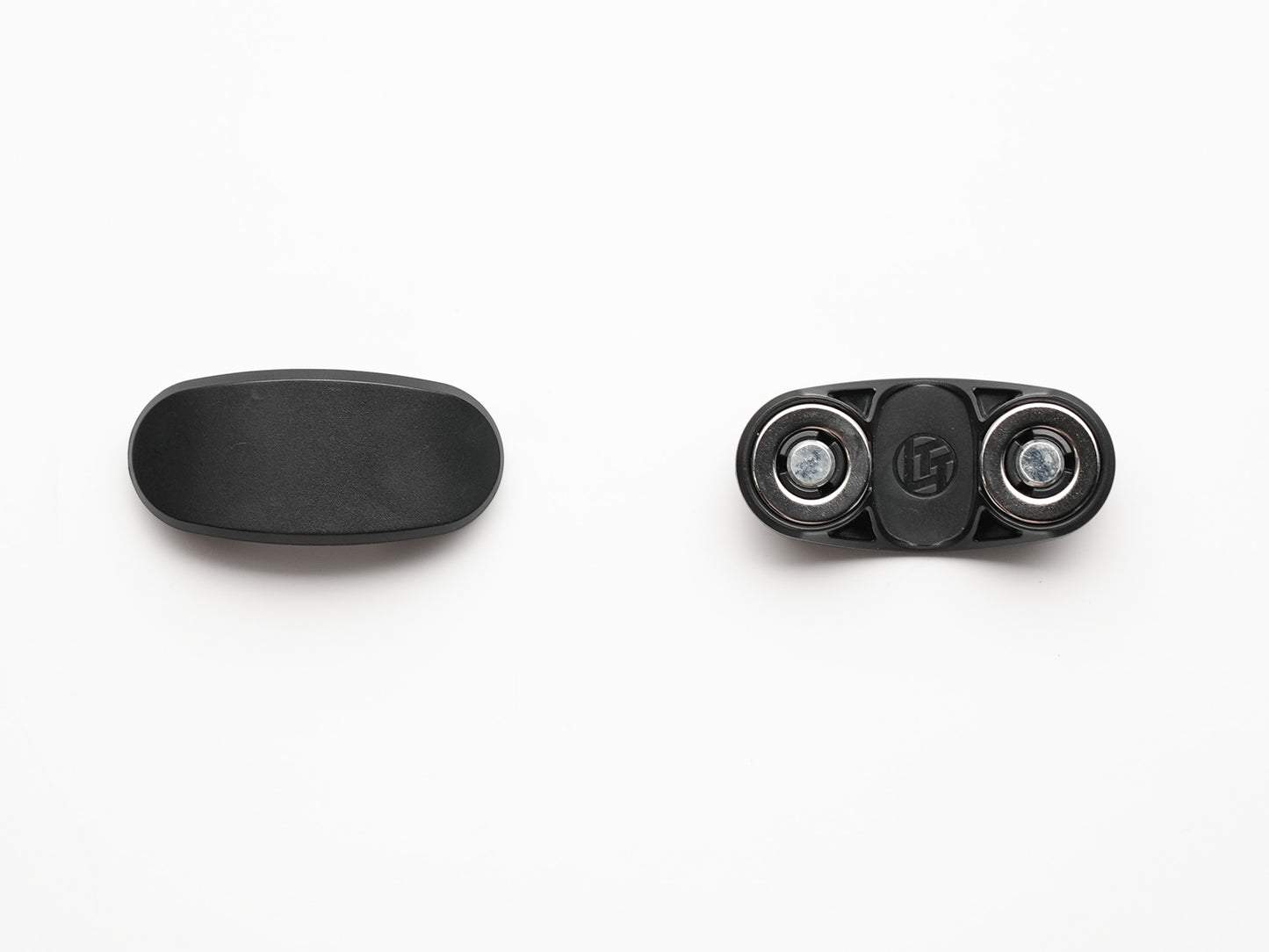

  • All packs include matching screws and Standard Steel Plates

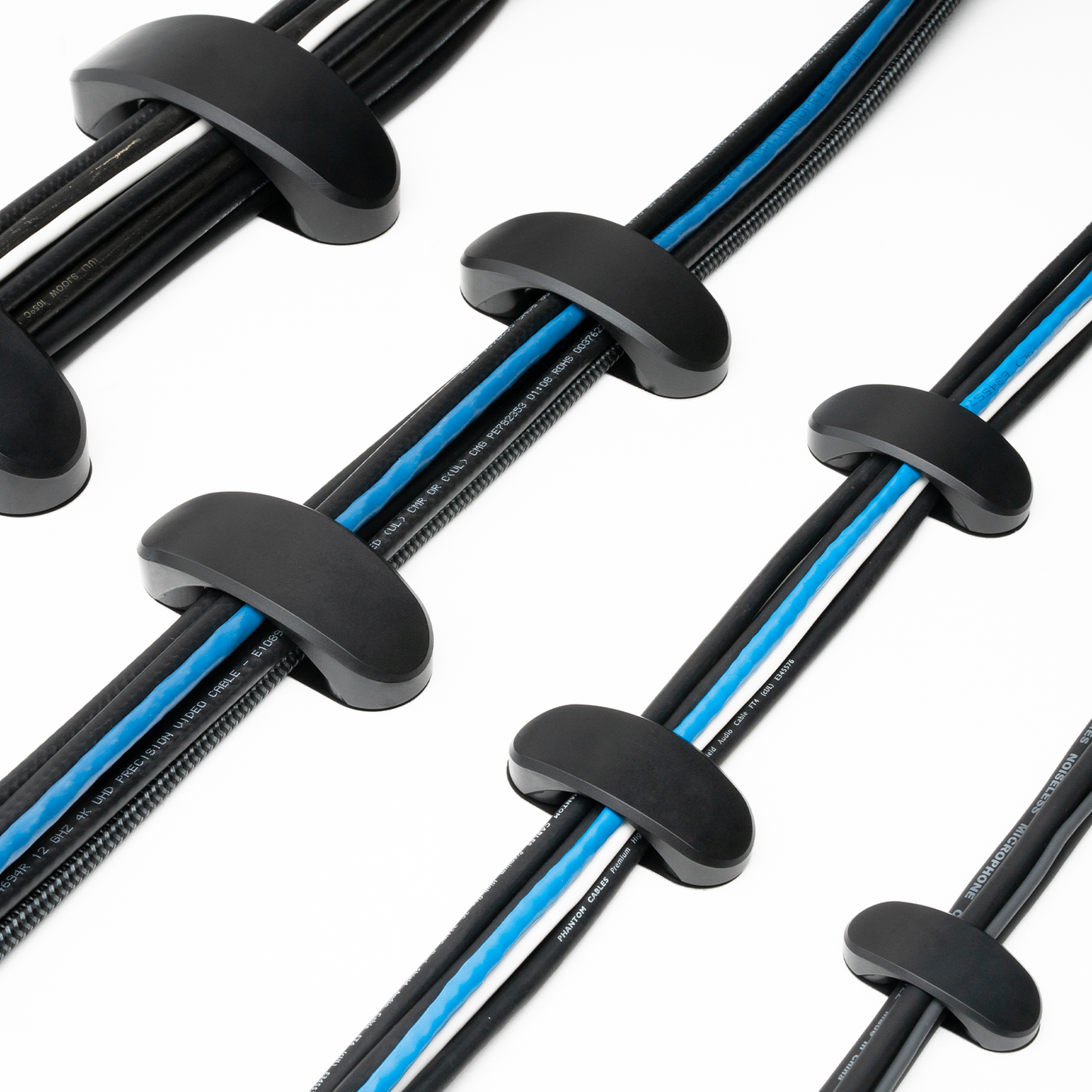

Make your life easier and eliminate setup clutter

  • Our cable organizer kit can simplify your setup and keep your floor free of tripping hazards for your kids and pets. Keep your cables out of sight and out of mind with our premium arches and accessories - all using neodymium magnets for maximum customization and cable security.

Quick & simple installation

  • Peel and stick the plates to anchor cables to your desired surface, run your cables, and click your arches and accessories to hold your perfect layout. We include screws with every standard plate for maximum hold.

Fully customizable

  • Works on all surfaces - walls, desks, server racks, and more! Add our Silicone Grips to hold up to 50% more weight on vertical surfaces, or if you prefer an adhesive-only solution, check out our VHB Steel Plates. Full info in the “related products” below.

Only the best materials

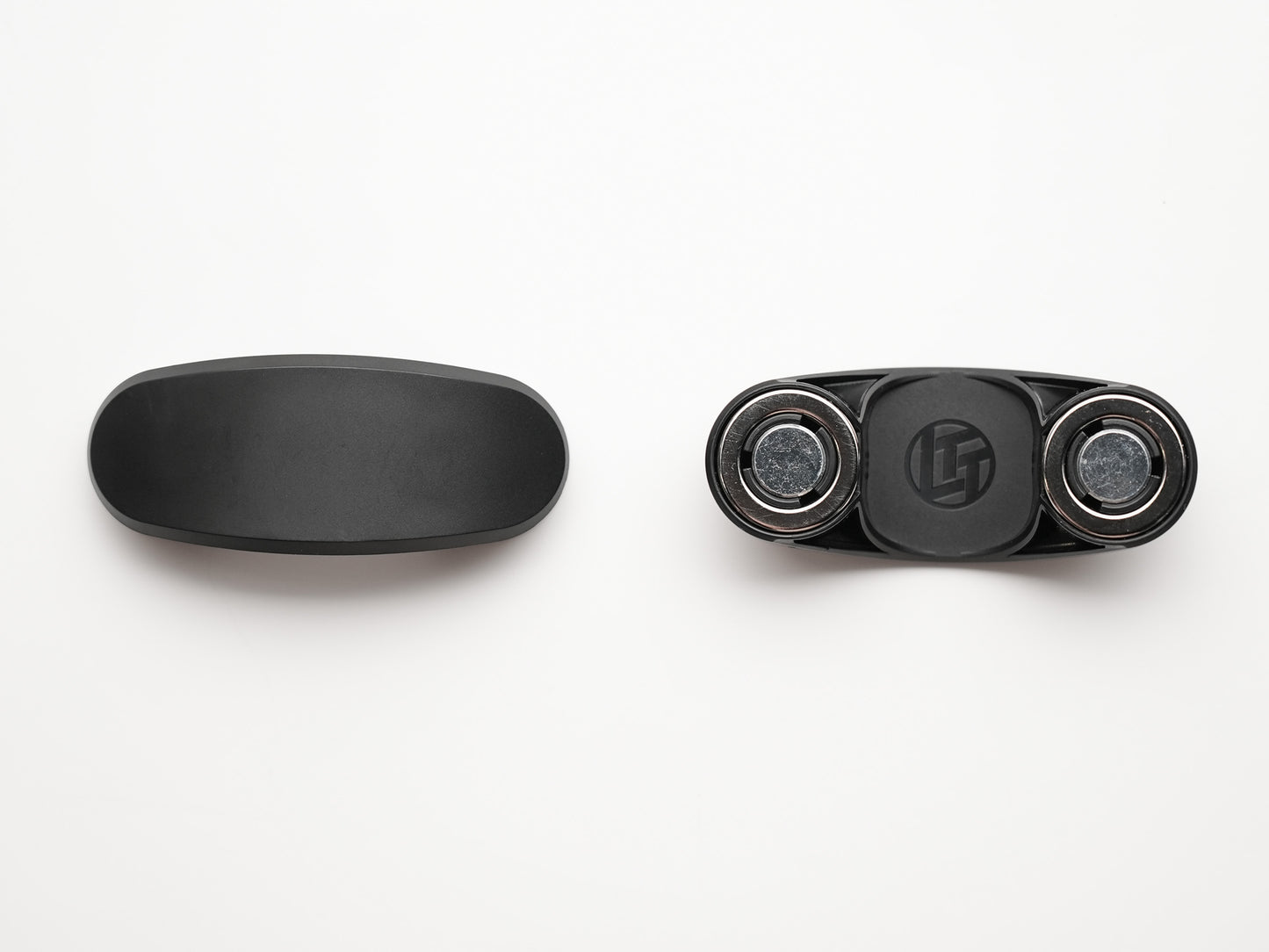

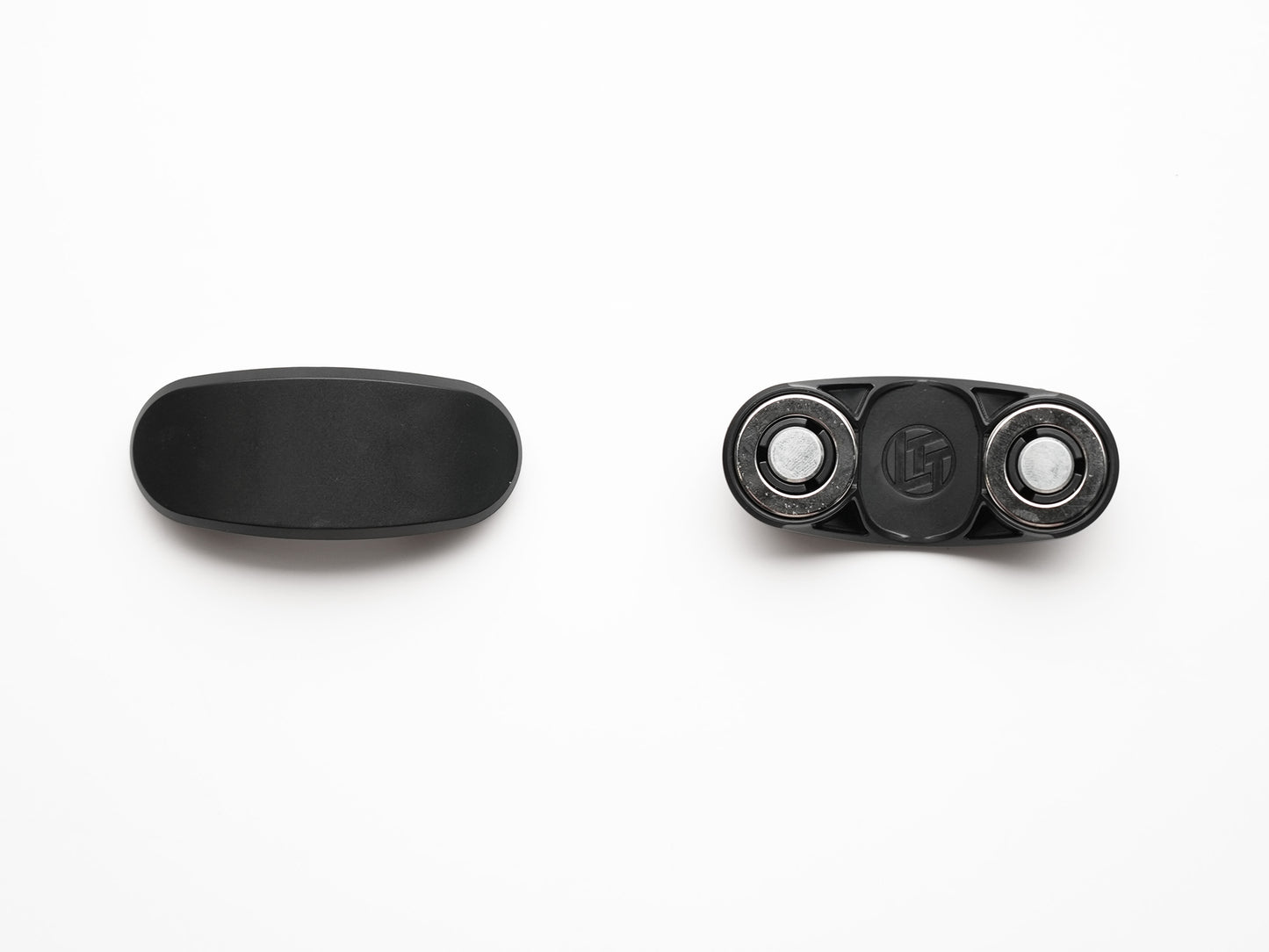

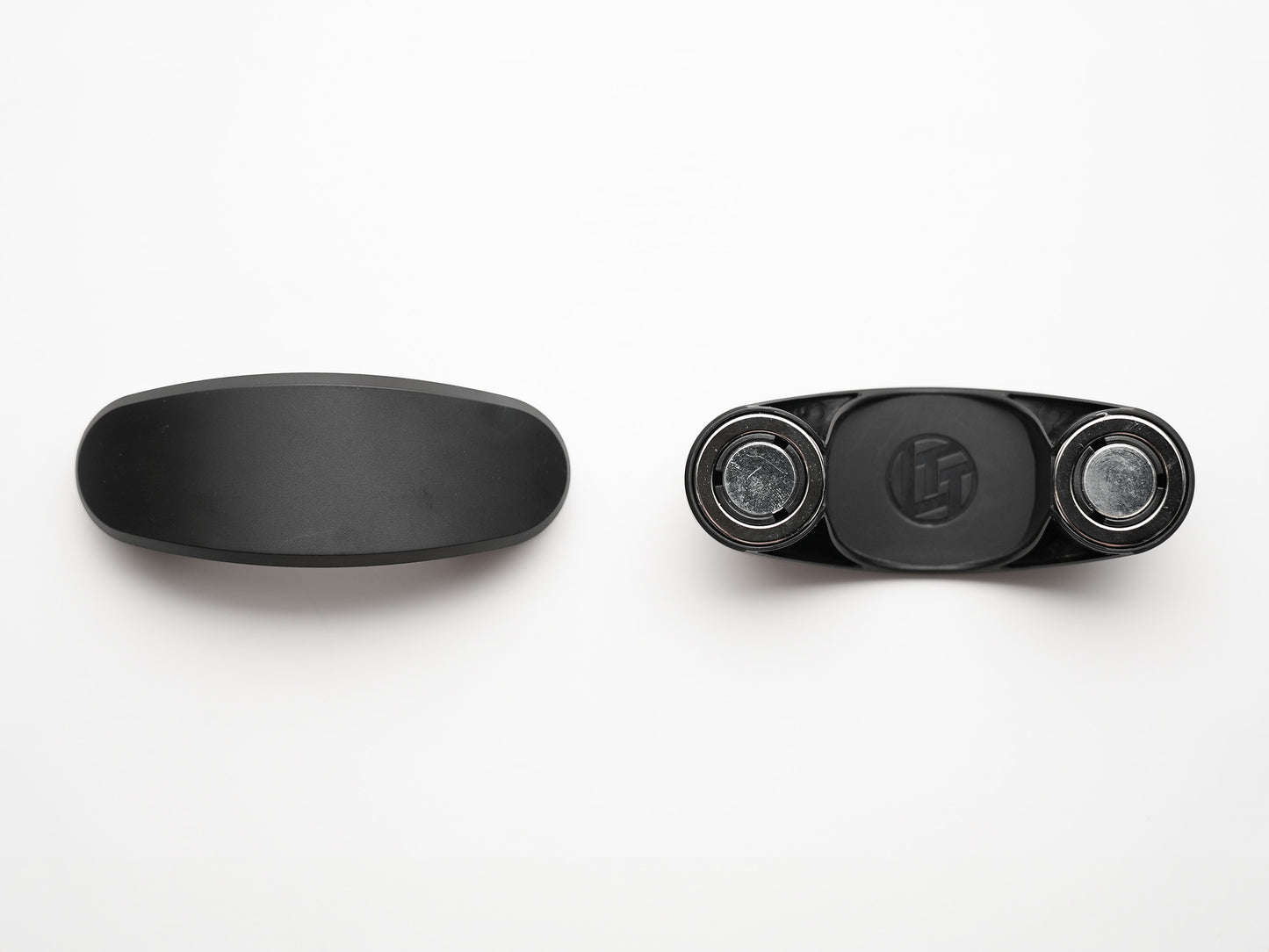

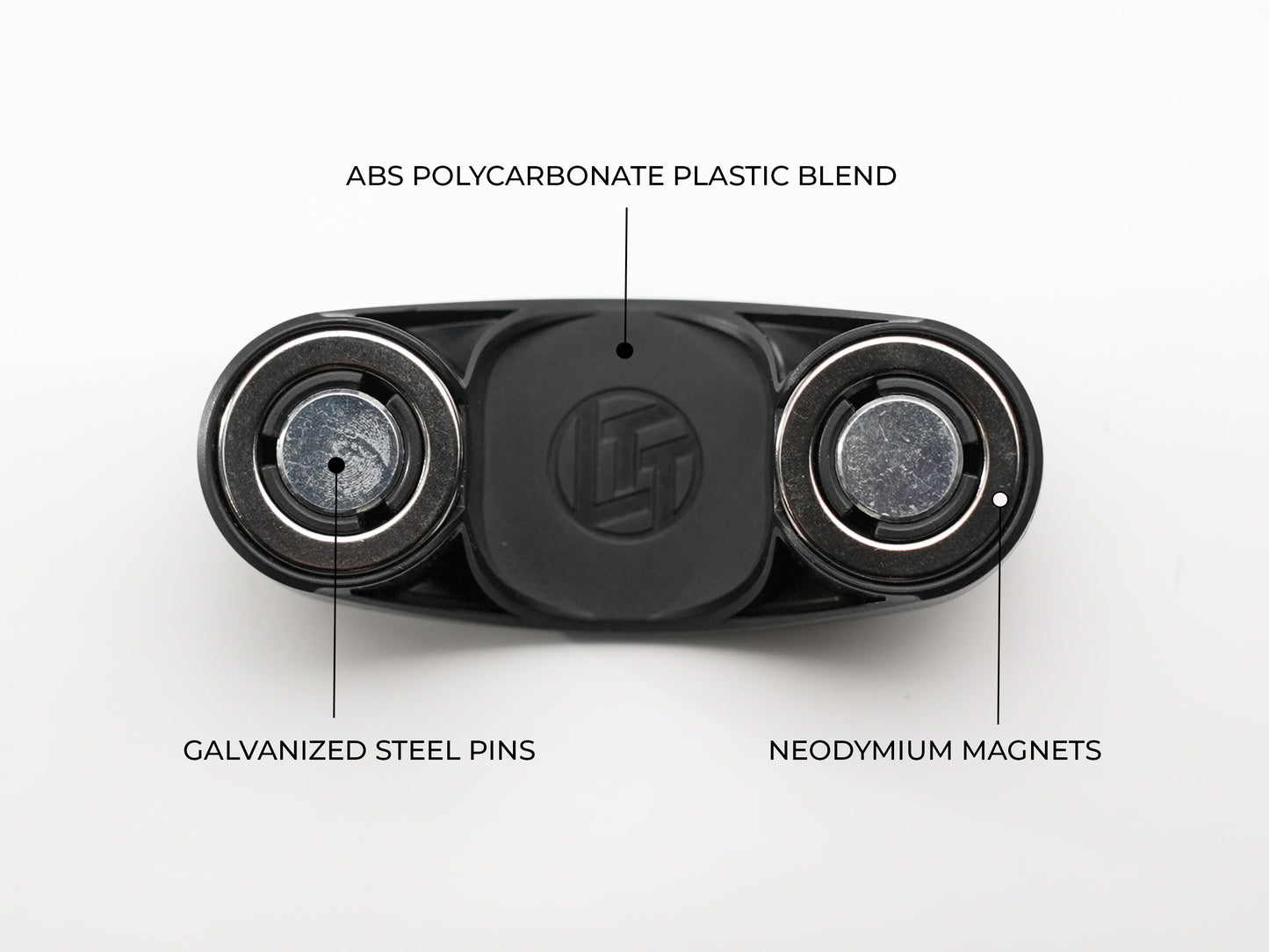

  • Using neodymium magnets - the gold standard for any magnetic application - our arches and accessories are built to last. Our design allows for easy adjustment and reuse whether you make a small change or totally revamp your setup.

With Magnetic Cable Management you’ll enjoy a clean desk for years to come!

How to install:

  1. Clean your mounting surface with 70% isopropyl alcohol or soap and water solution to remove any dirt or oil that may interfere with the adhesive backing.
  2. Peel the backing layer off a loose plate (or a plate magnetically attached to its cable arch) to expose the adhesive.
  3. Press the plate (or connected plate and arch) against the surface in the desired location.
  4. Apply firm pressure to the plate or arch against the mounting surface for 20-30 seconds.
  5. For maximum security, screw your plate into your mounting surface with the included screws.

If you used the Cable Tie Holder to help position the plate:

  1. Carefully remove the arch from the plate (Tip: reaching inside the arch to hold the plate against the surface while sliding the arch sideways can be helpful)
  2. Ensure good contact between the entire plate to the mounting surface below by firmly pressing all areas of the plate against the mounting surface
Product Information

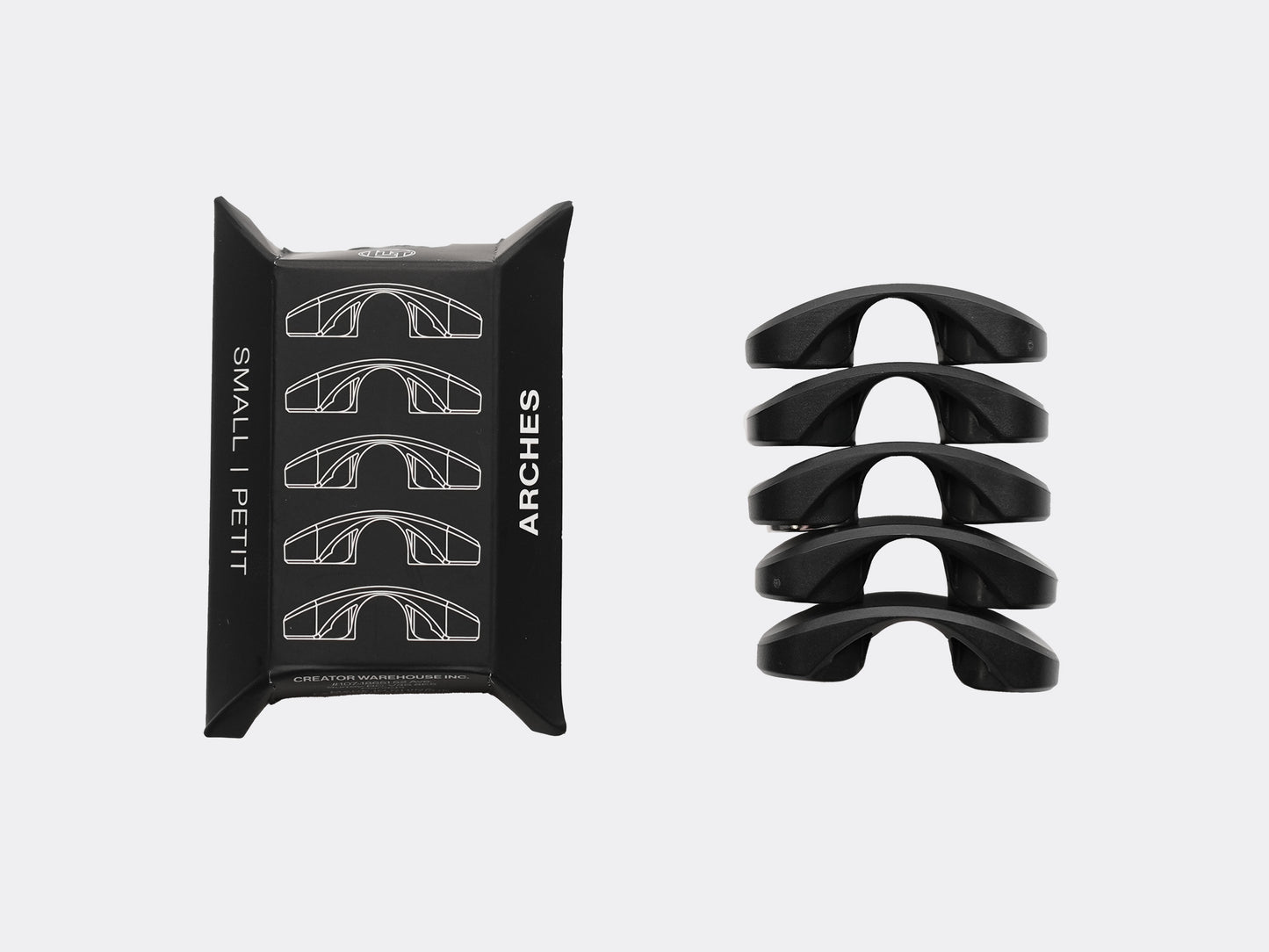

Small Arches
- Includes 5 x Small Magnetic Arches

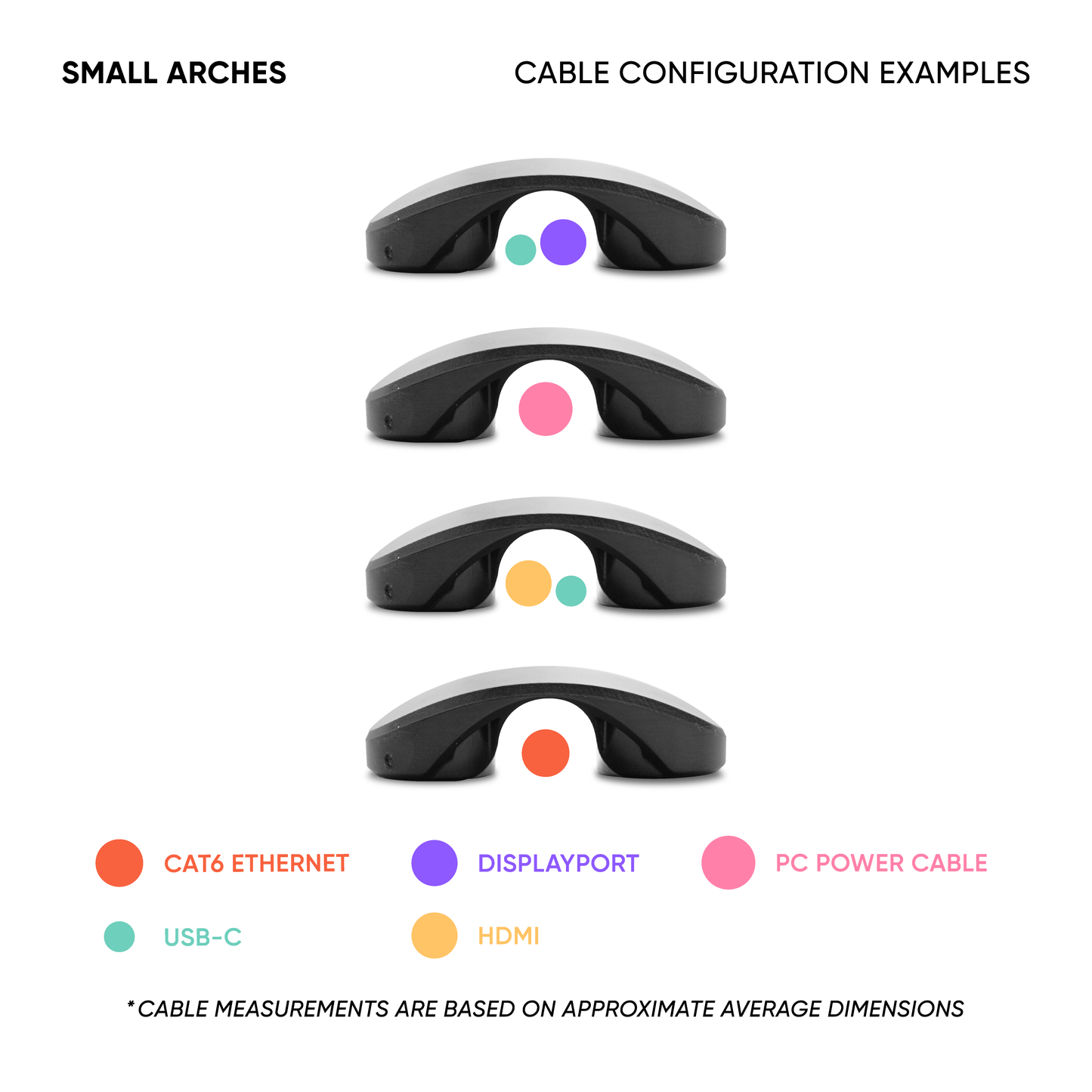

- A single Small Arch can hold approximately 4 USB-C cables (4.8mm diameter) or 1 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Small Arch can support approximately 0.85kg/1.87lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

Medium Arches

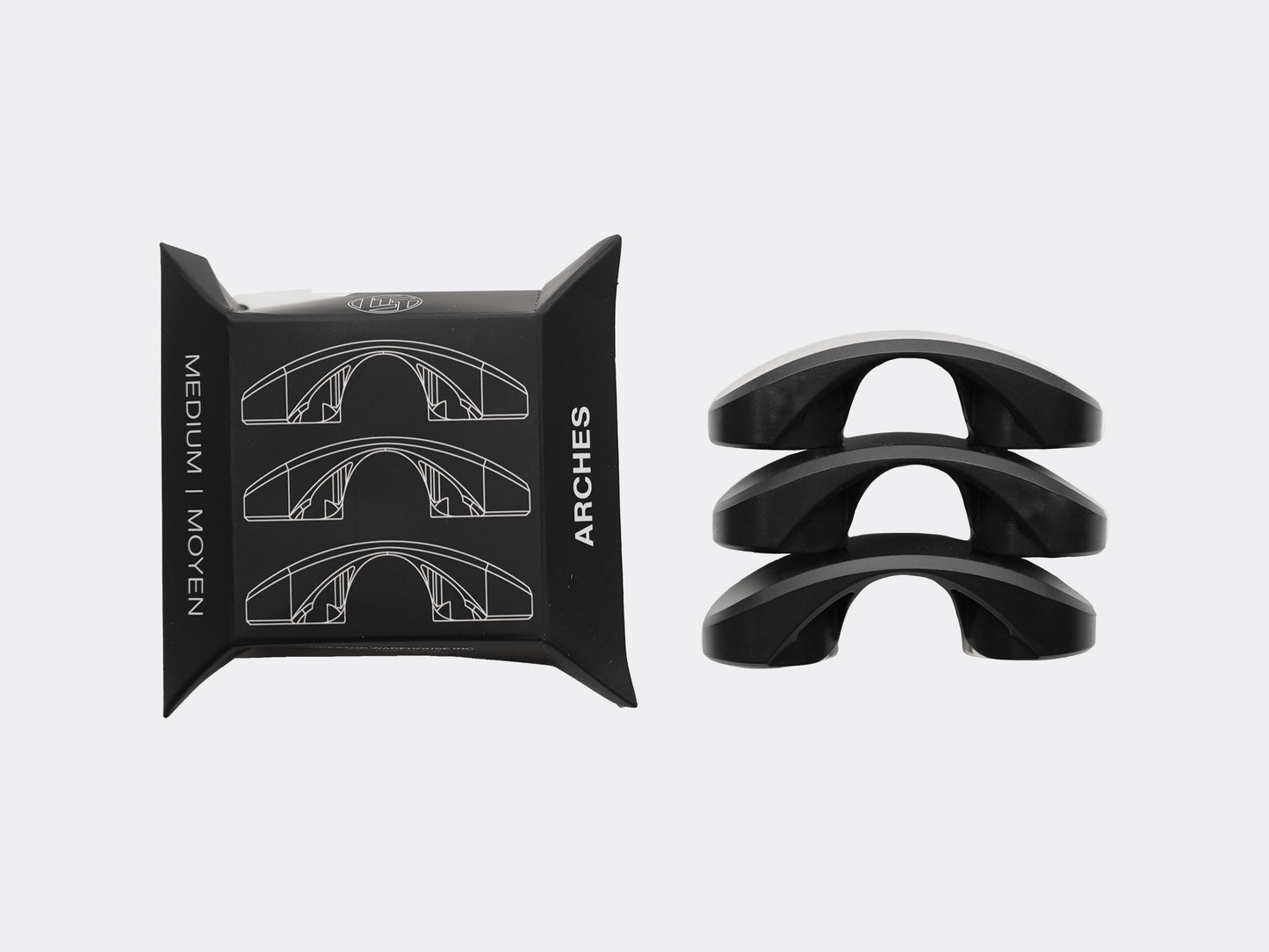

- Includes 3 x Medium Magnetic Arches

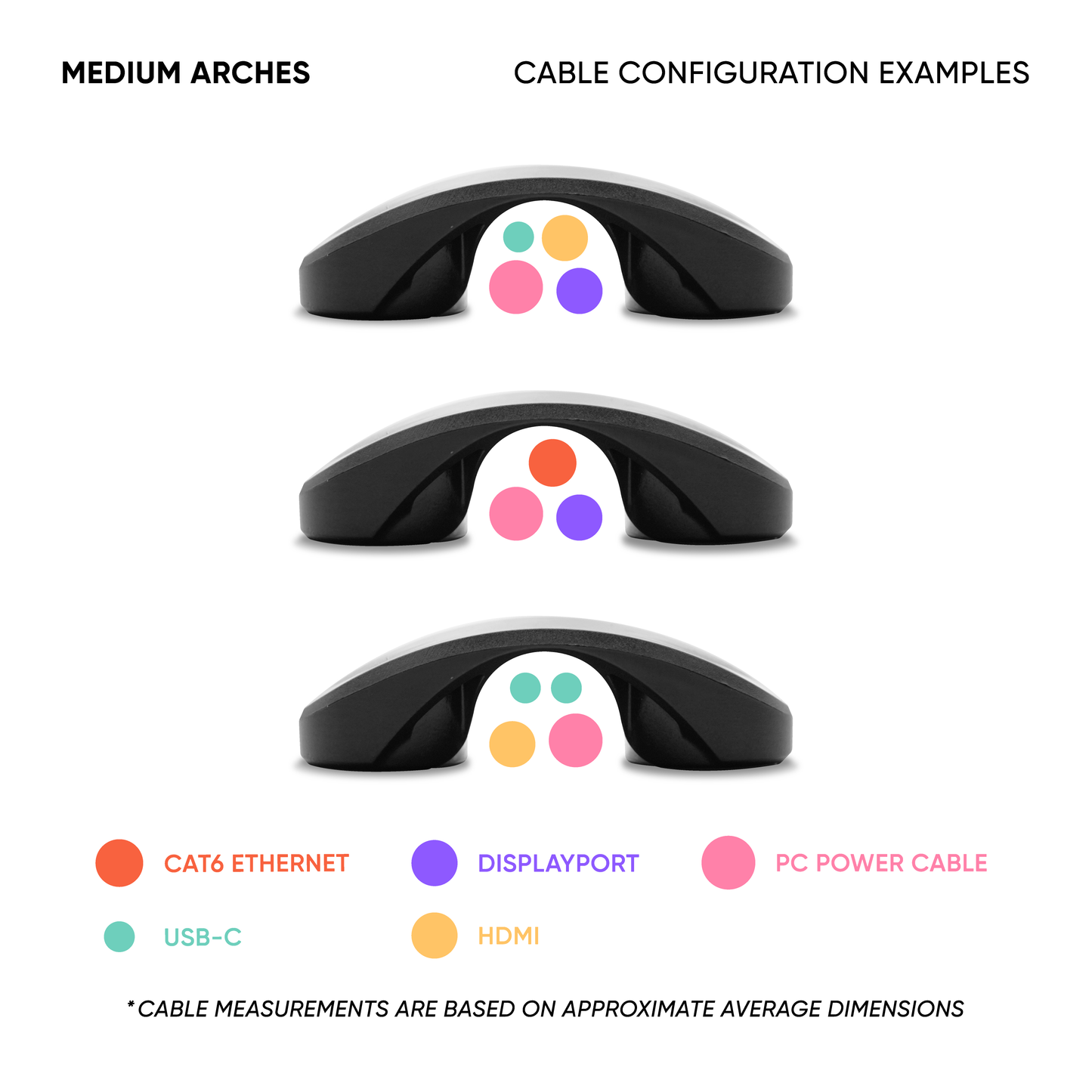

- A single Medium Arch can hold approximately 12x USB-C cables (4.8mm diameter) or 2x 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Medium Arch can support approximately 1.0kg/2.2lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

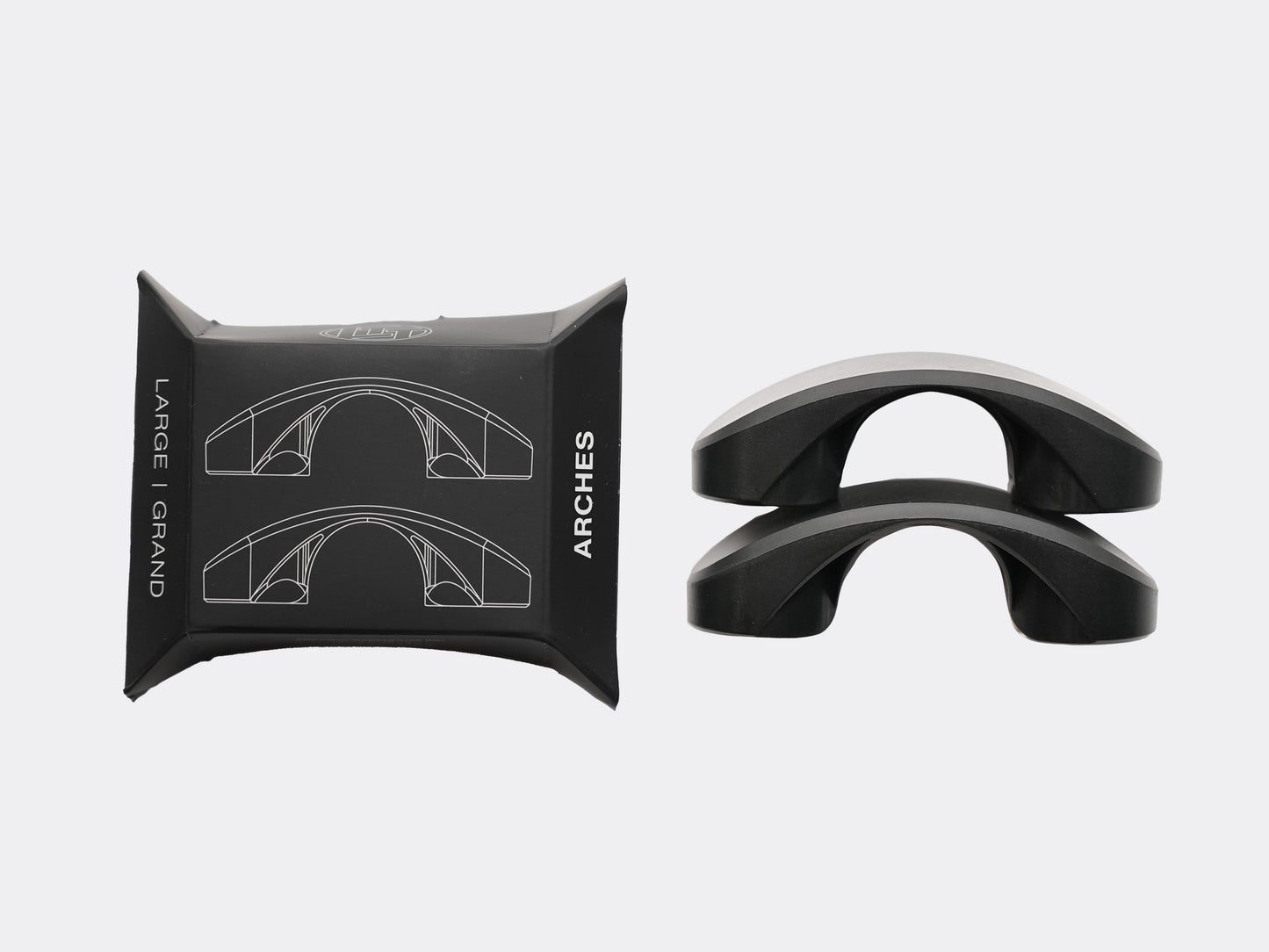

Large Arches
- Includes 2 x Large Magnetic Arches

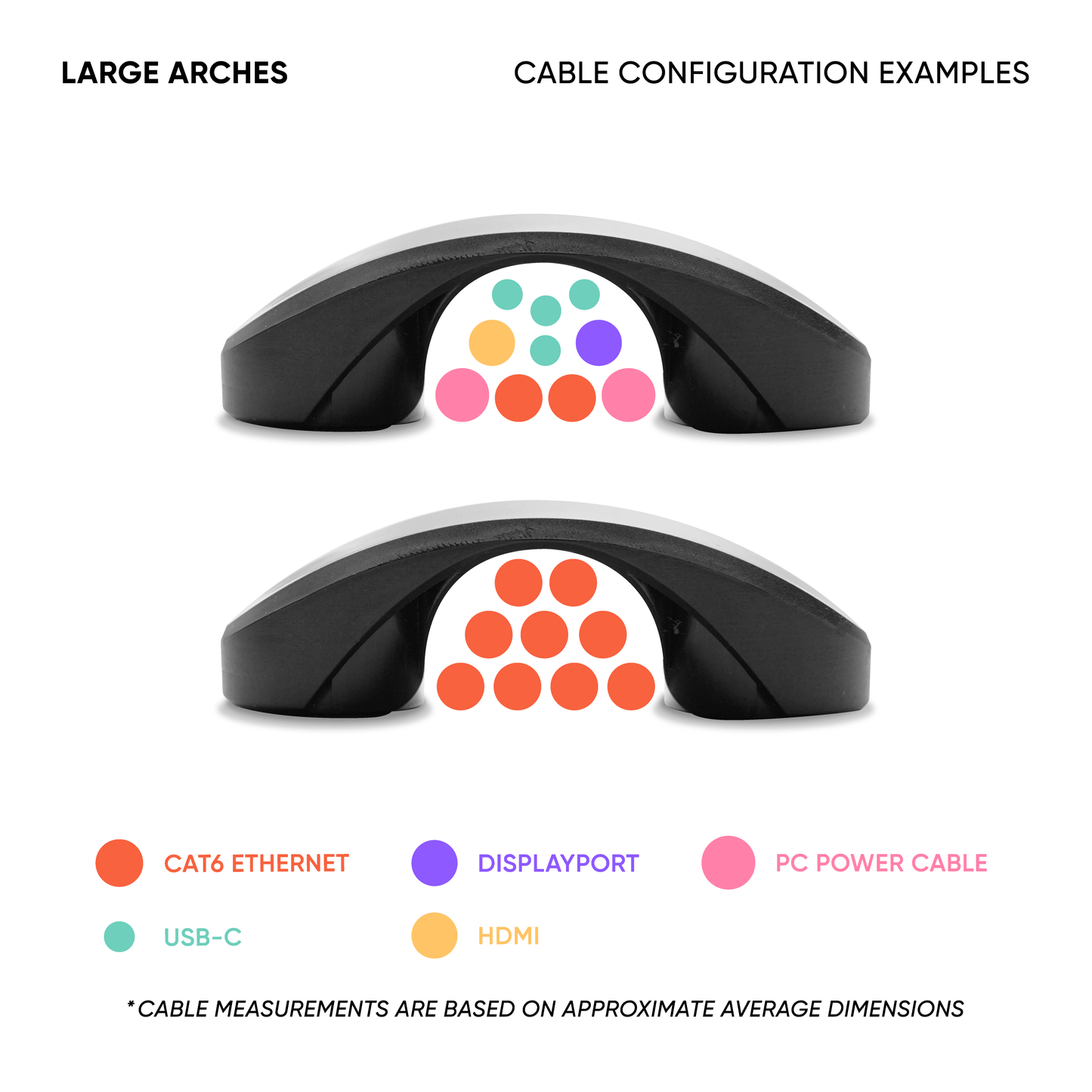

- A single Large Arch can hold approximately 22x USB-C cables (4.8mm diameter) or 5x 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Large Arch can support approximately 2.4kg/5.3lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

X-Large Arch

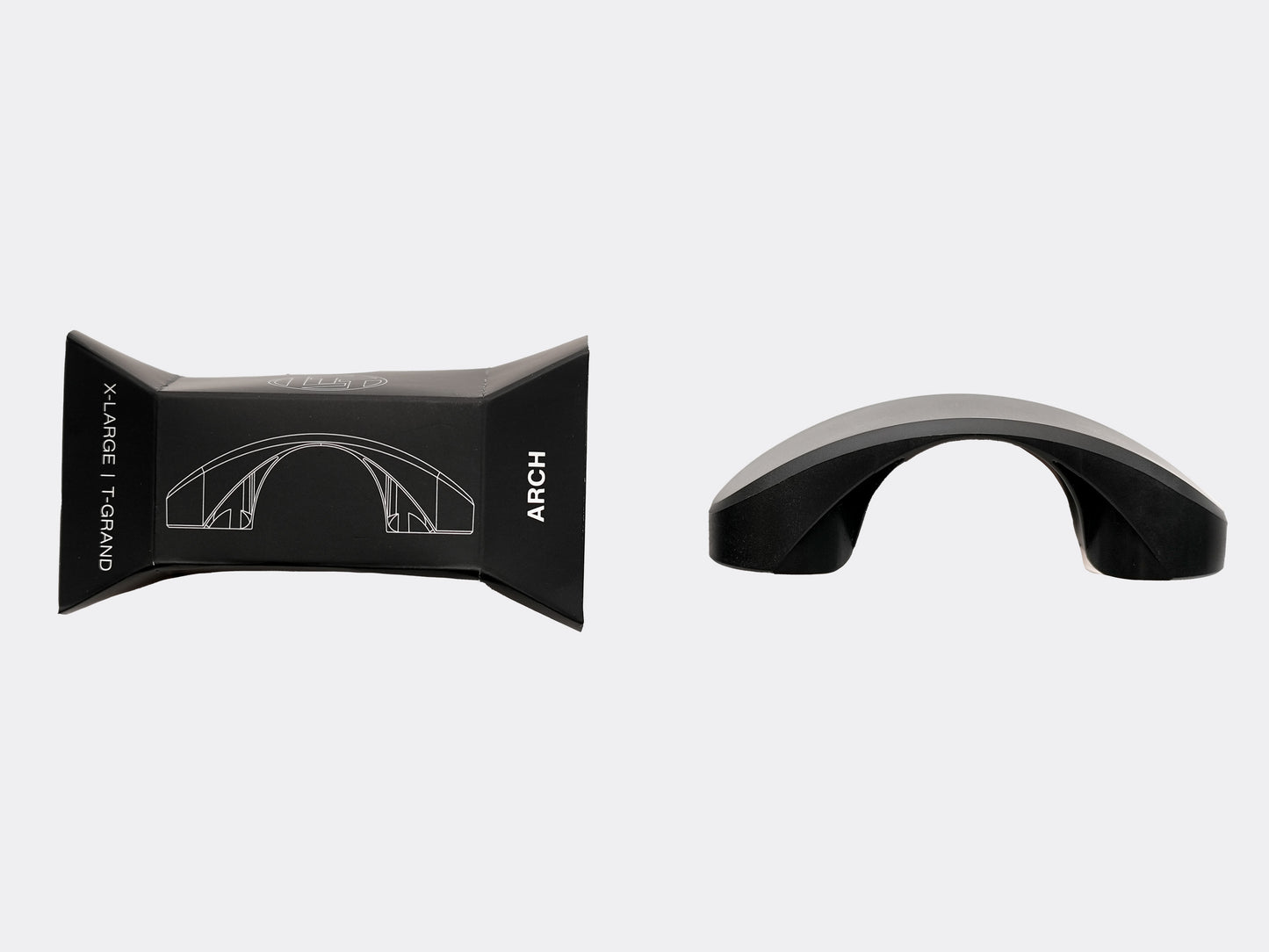

- Includes 1 x X-Large Magnetic Arch

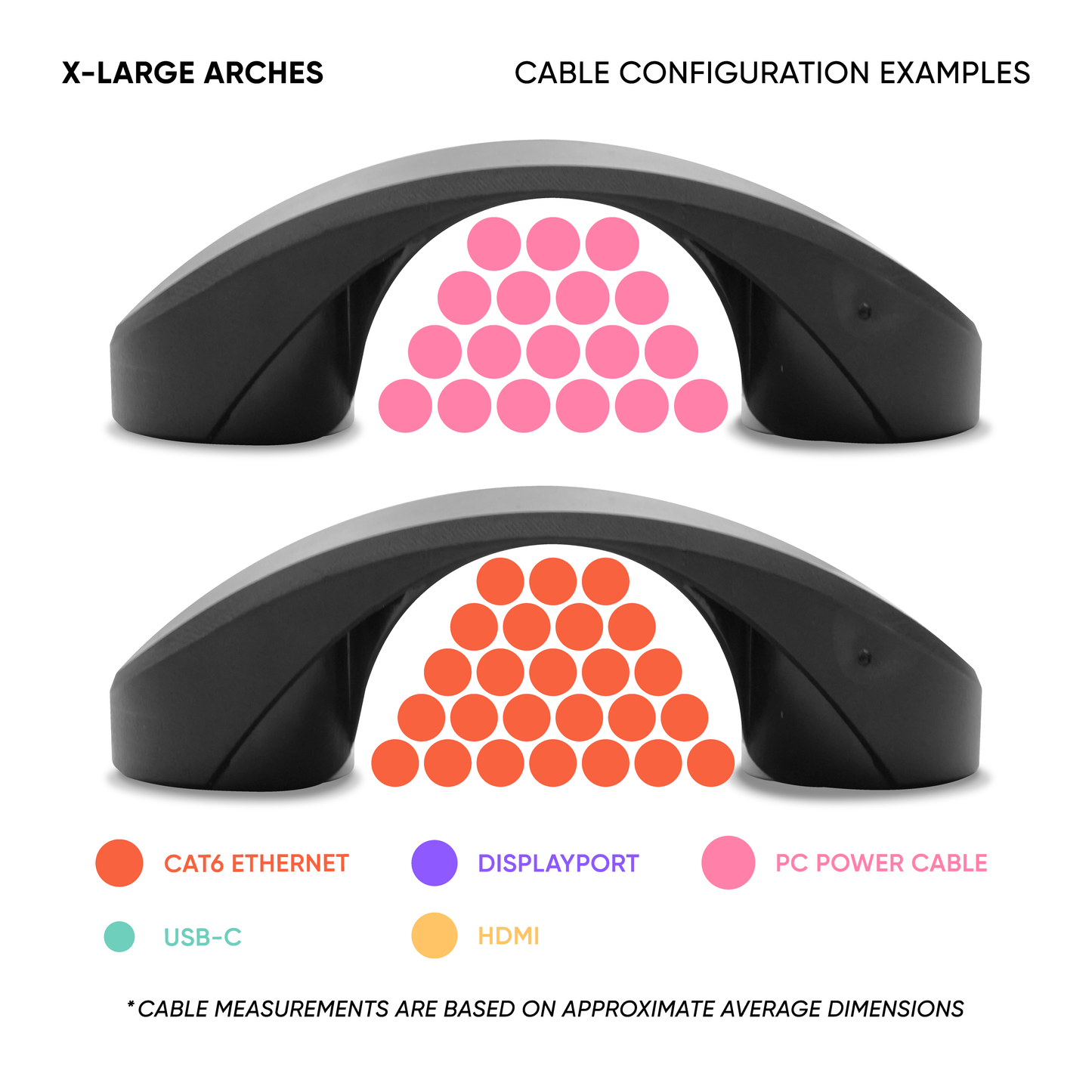

- A single X-Large Arch can hold approximately 55 USB-C cables (4.8mm diameter) or 12 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each X-Large Arch can support approximately 2.8kg/6.2lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plate with screws

Please note: VHB Magnetic plates and
Silicone grips for the magnetic plates are sold separately. See "Related Products" below.

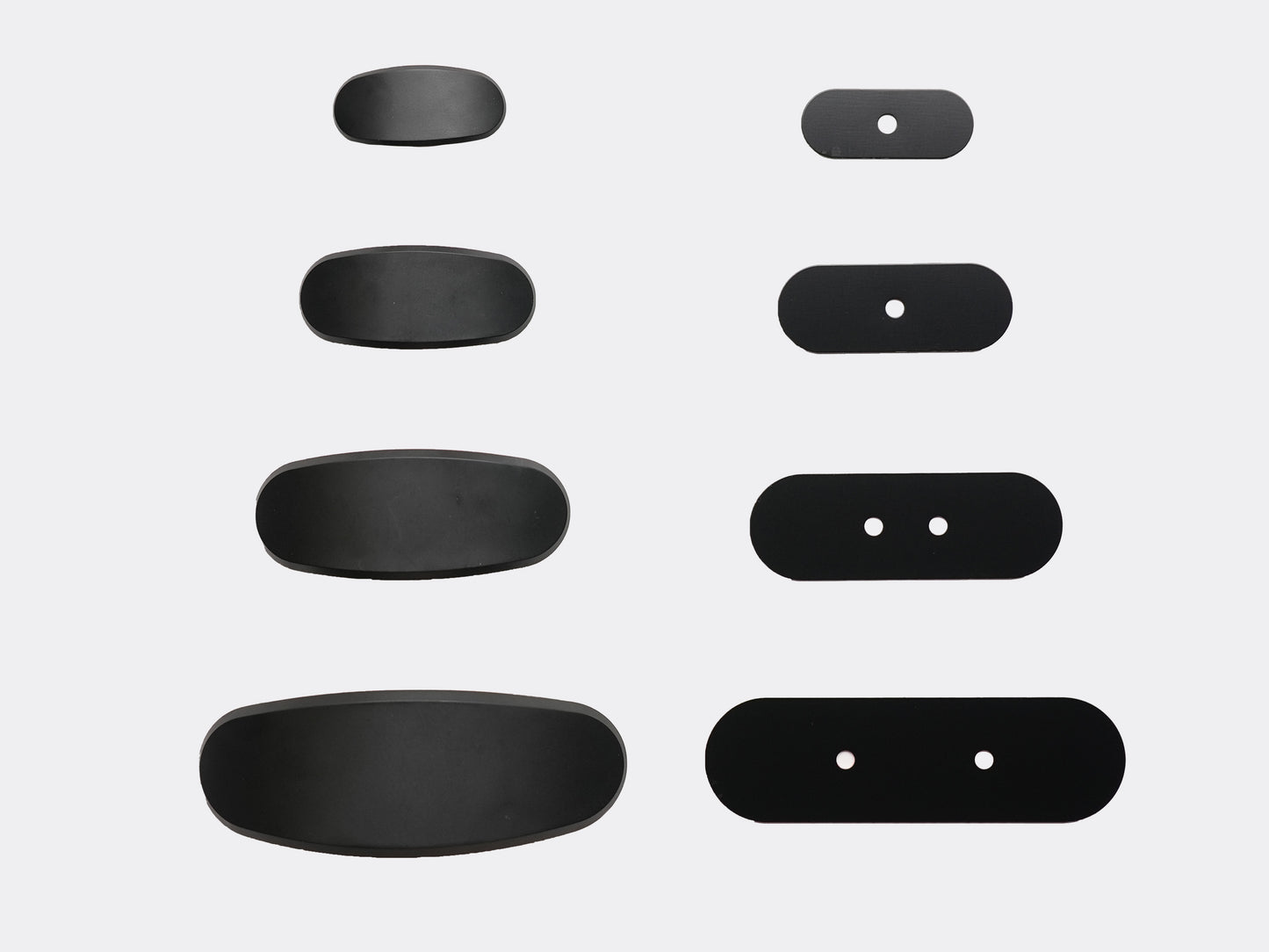

Size Guide
Small Arch: 4.7cm w X 2.2cm d X 1.3cm h
Medium Arch: 6.4cm w X 2.8cm d X 1.8cm h
Large Arch: 8.5cm w X 3.5cm d X 2.5cm h
X-Large Arch: 11.5cm w X 4.5cm d X 3.6cm h
Related Products

Interested in more?

Our Silicone Grips provide a layer of protection for existing magnetic surfaces.

Prefer tape to screws? Our 3M VHB plates provide a much more secure adhesive option for any surface.
