Description

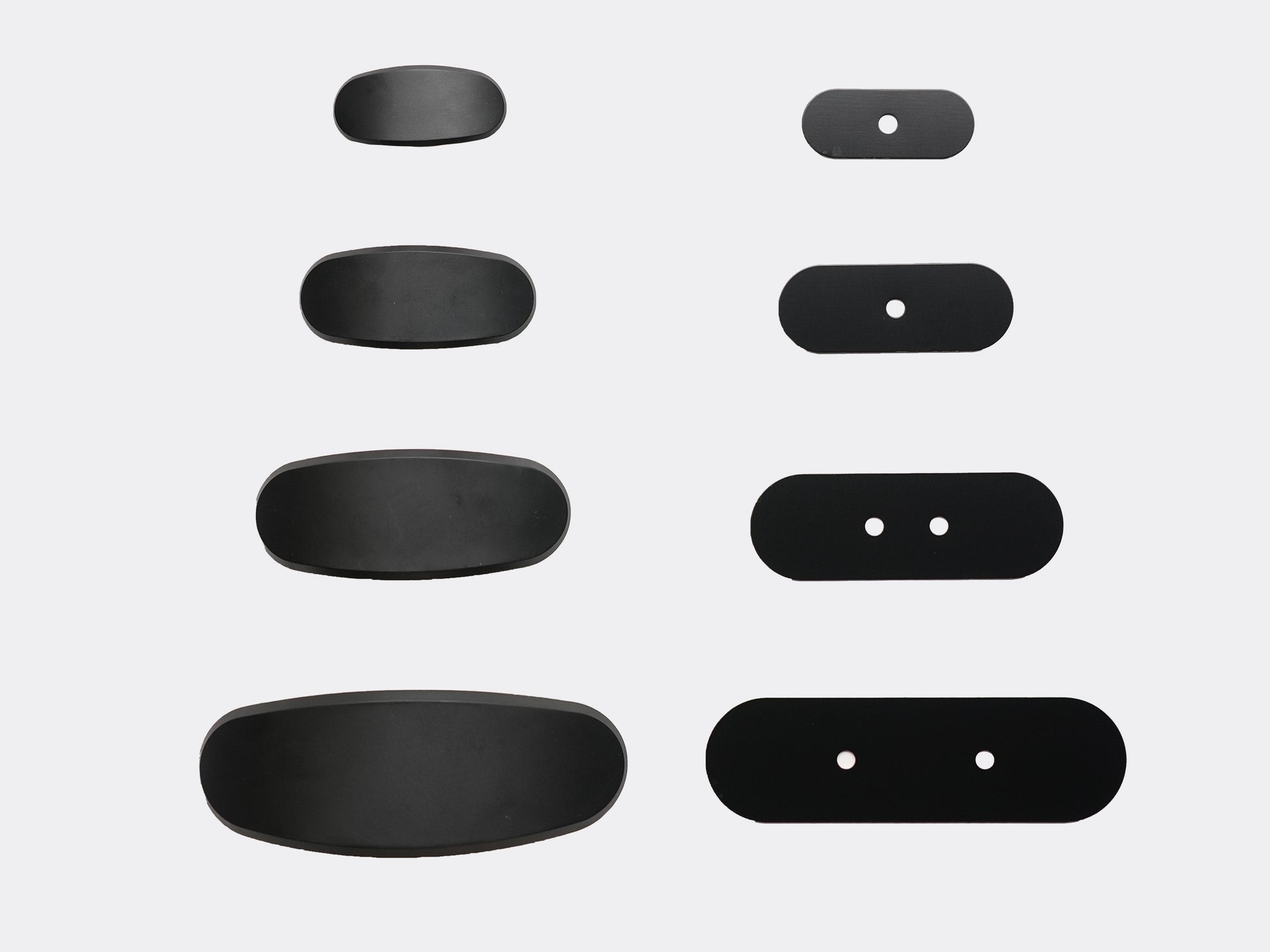

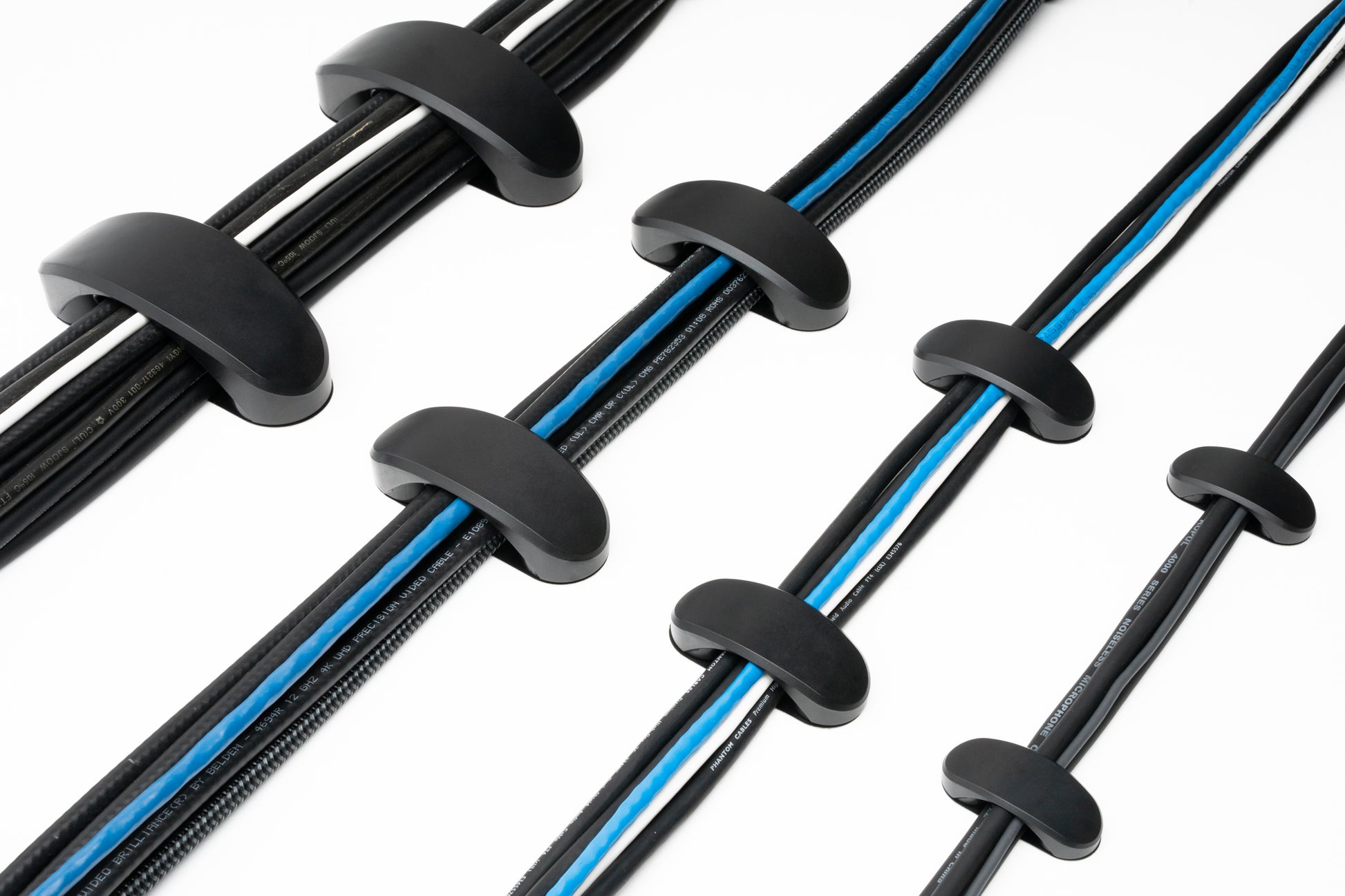

Cable Arches (4 options available)
- Small - 5 arch pack
- Medium - 3 arch pack
- Large - 2 arch pack
- X-Large - 1 arch pack
- All packs include matching screws and Standard Steel Plates
WHY MAGNETIC CABLE MANAGEMENT?
Eliminate cable clutter for good.
-
Magnetic Cable Management is designed to eliminate the mess cables make, keeping your floor free of tripping hazards. We’ve designed MCM to work with any setup.
Quick, simple, and secure installation.
-
Run your cables any way you’d like, and our magnetic arches & accessories will hold them in place. Don’t have a magnetic surface? No problem. We offer peel and stick magnetic plates to make any surface compatible with MCM! We also include screws with every standard plate for maximum hold. You can also add our separately purchased Silicone Grips to hold up to 50% more weight on vertical surfaces.
Re-manage cables in a snap.
-
Need to add or remove a cable? Want to change how your cables are managed? No worries, just remove your arches or accessories and click it back on when you’re done. We’ve made it easy for you to get creative with how you manage your cables, no matter the setup.
Premium build and materials.
-

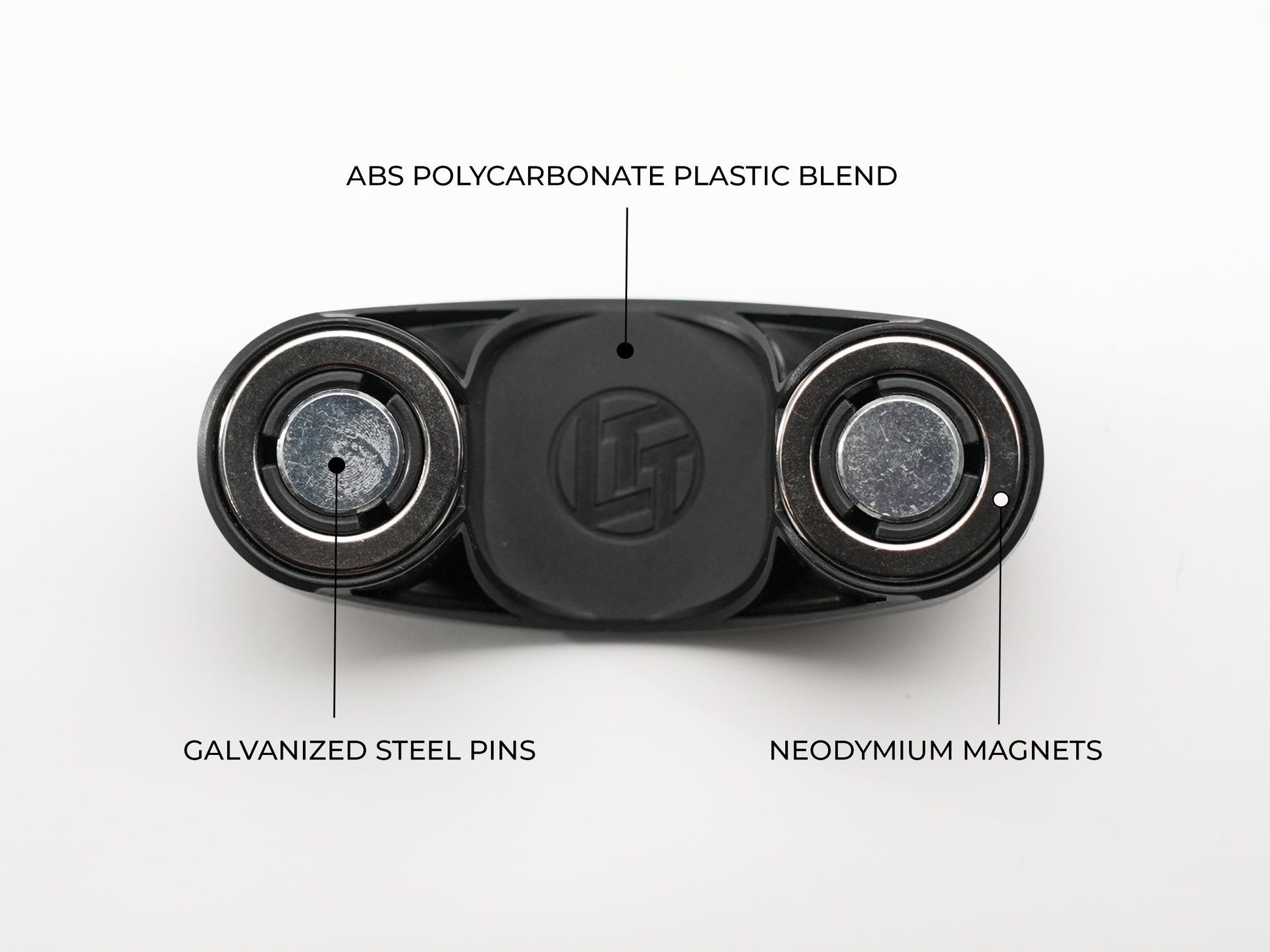

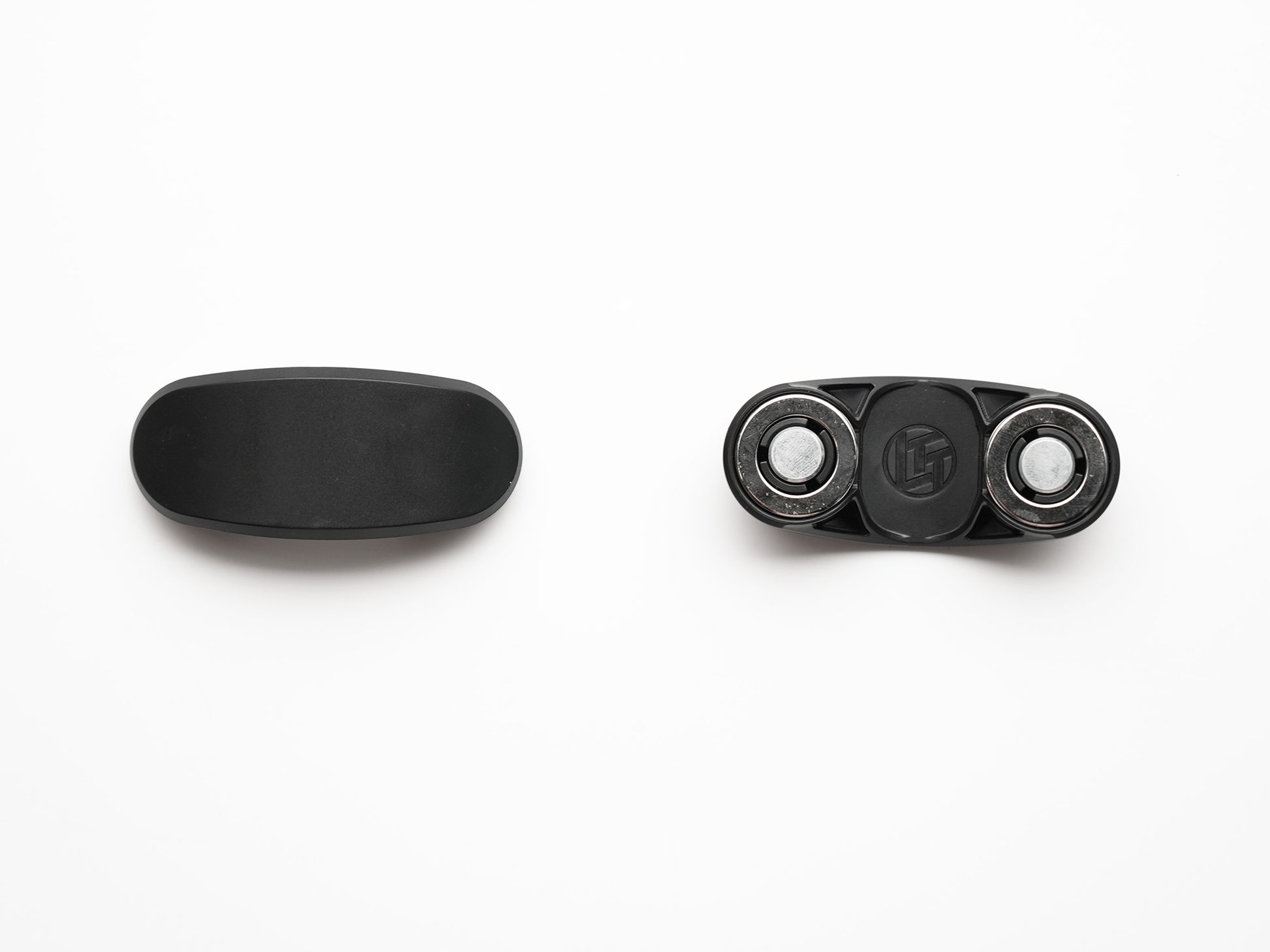

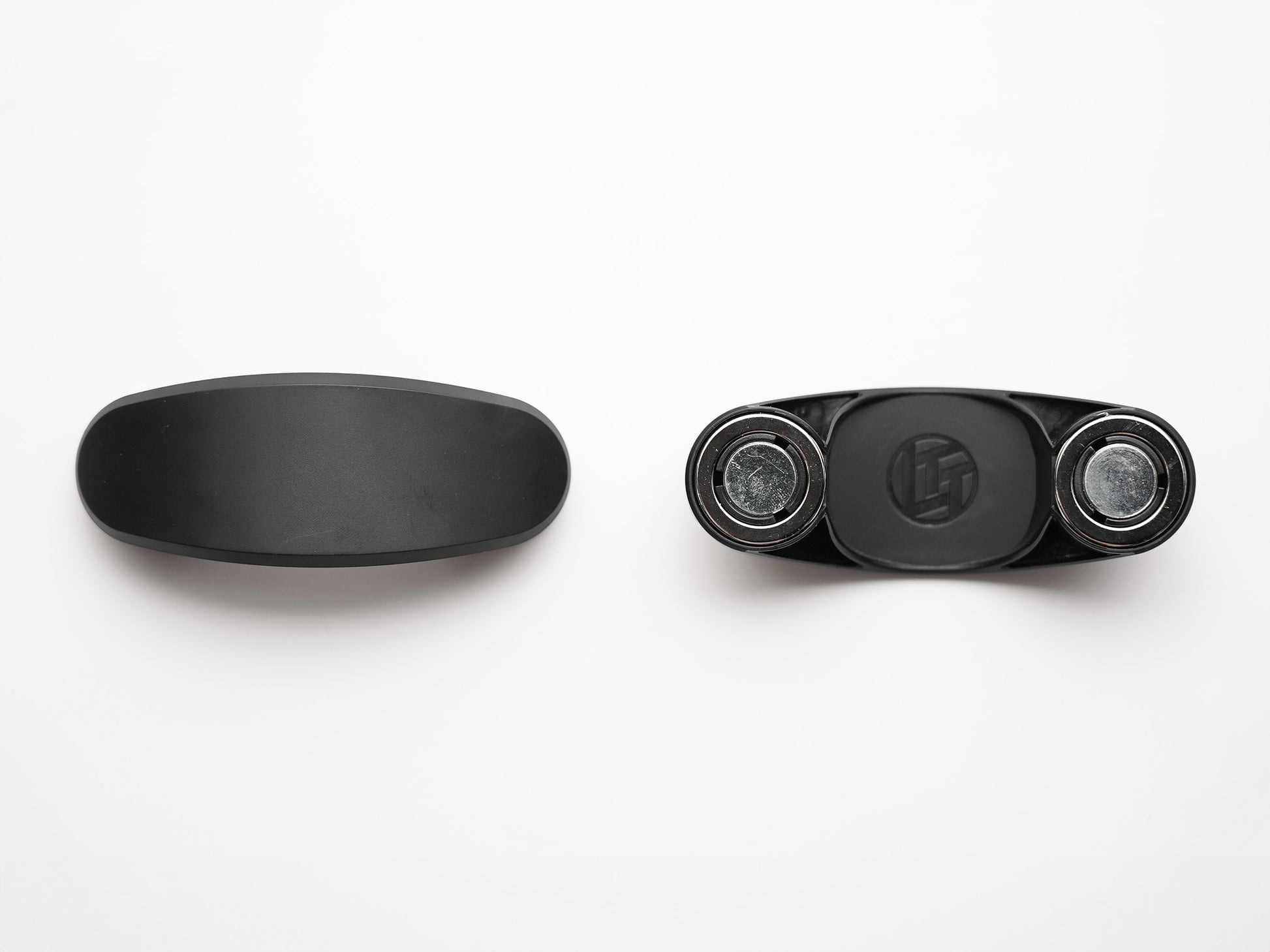

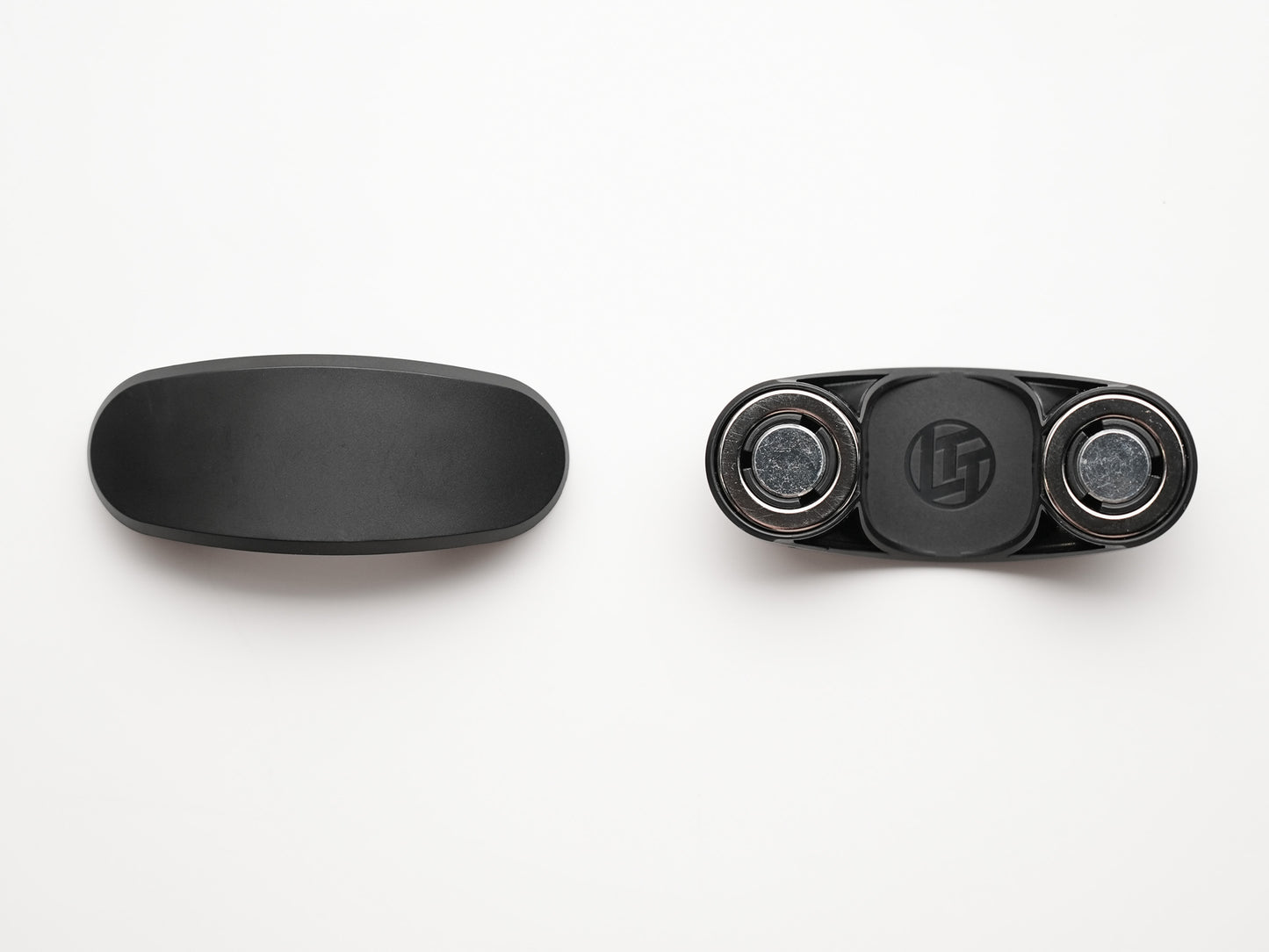

Using neodymium magnets, the gold standard for any magnetic application – we’ve designed MCM to stay where you want it to stay. Every accessory is built with premium materials, so you can be confident that your cables will stay organized through the test of time.
HOW TO INSTALL
Standard Adhesive Plates:
- Clean your mounting surface with 70% isopropyl alcohol or soap and water solution to remove any dirt or oil that may interfere with the adhesive backing.
- Peel the backing layer off a loose plate (or magnetically connected plate and arch) to expose the adhesive.
- Press the plate (or connected plate and arch) against the surface in the desired location.
- Apply firm pressure to the plate or arch against the mounting surface for at least 3-4 seconds.
- For maximum security, screw your plate into your mounting surface with the included screws.
If you used a Magnetic Arch to help position your adhesive plate:
-
Carefully remove the arch from the plate (Tip: reaching inside the arch to hold the plate against the surface while sliding the arch sideways can be helpful)
- Ensure good contact between the entire plate to the mounting surface by firmly pressing all areas of the plate against the mounting surface.
DISCLAIMER:
WARNING — INTERNAL INJURY HAZARD
Swallowed magnets can damage internal organs and have resulted in DEATH and SERIOUS INJURIES.
These magnets are NOT toys. Keep away from ALL children.
NEVER put magnets near your mouth or nose. Magnet ingestions are often accidental and there is a possibility that they will occur from:
-
Young children finding loose or missing magnets.
-
Older children and teens playing with magnets in their mouths or nose and imitating piercings.
Be aware of dropped or separated magnets. When not in use, locate all magnets and count them individually or return them to the following shape to be sure that none are missing. Store all magnets safely away from children, and in a secure storage container.
Seek immediate medical attention or contact the poison control center immediately if you think magnets were ingested. It is possible that X-rays or prompt surgical removal will be required. Do not wait for symptoms to appear as it is feasible that by then it will be too late for medical intervention.
Symptoms of magnet ingestion are often non-specific (abdominal pain, fever, etc.) and can take anywhere from hours to weeks to appear. By then, the damage can be severe. Untreated ingestions of magnets are likely to cause intestinal blockage, perforation, bleeding, infection, and death.
Keep away from Pets.
VHB Plates & Silicone grips are sold separately. See "Related Products" below.
Product Information

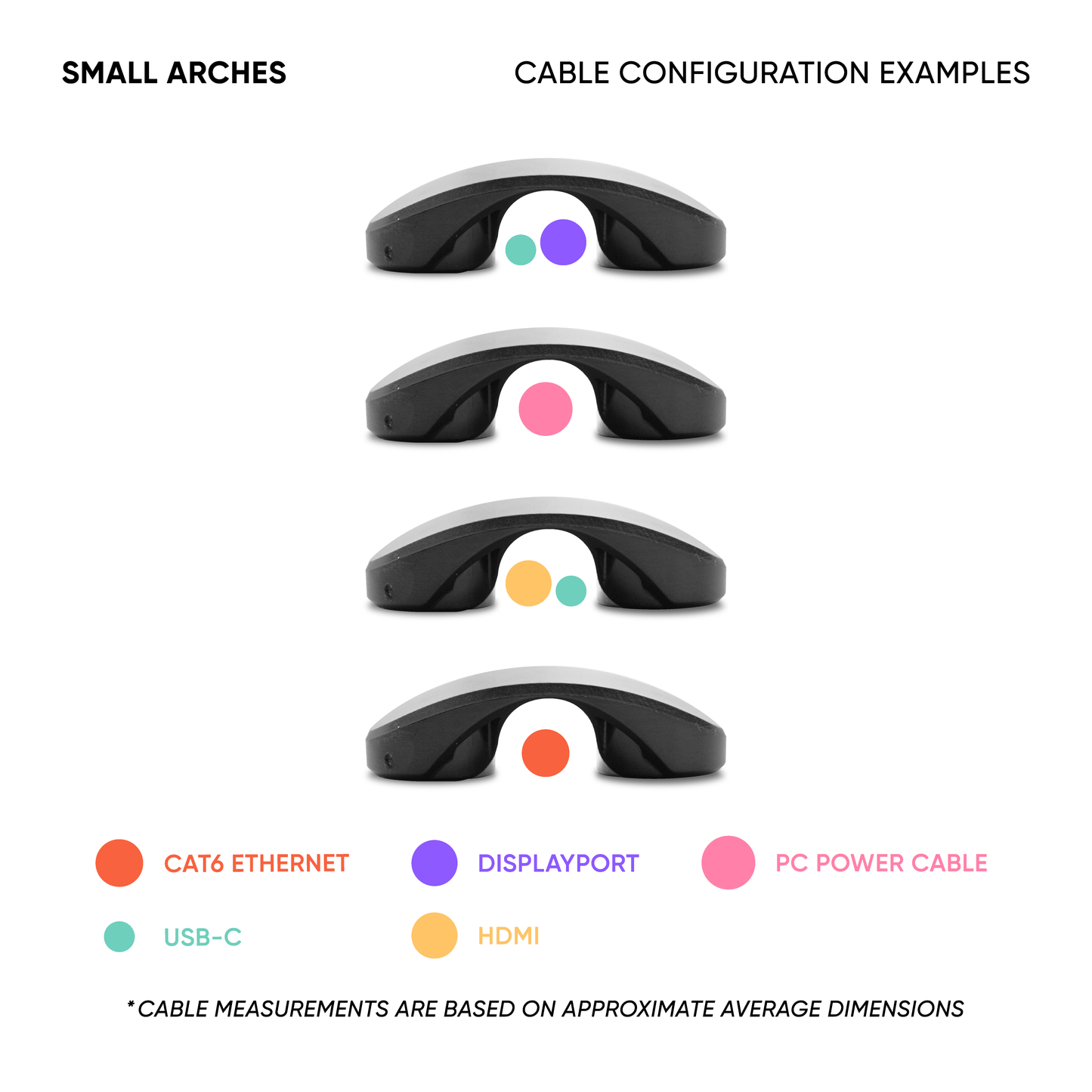

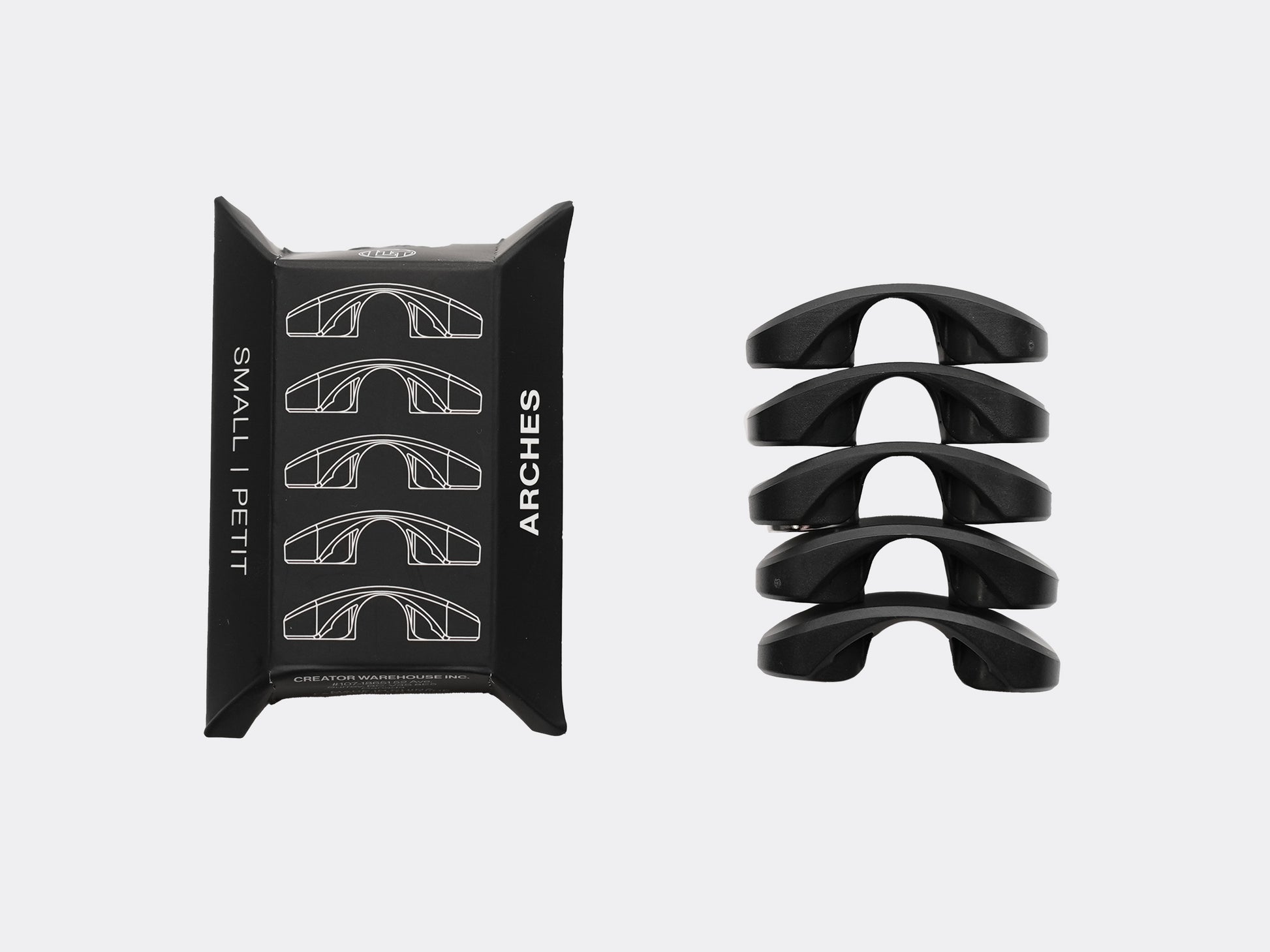

Small Arches
- Includes 5 x Small Magnetic Arches
- A single Small Arch can hold approximately 4 USB-C cables (4.8mm diameter) or 1 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Small Arch can support approximately 0.85kg/1.87lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

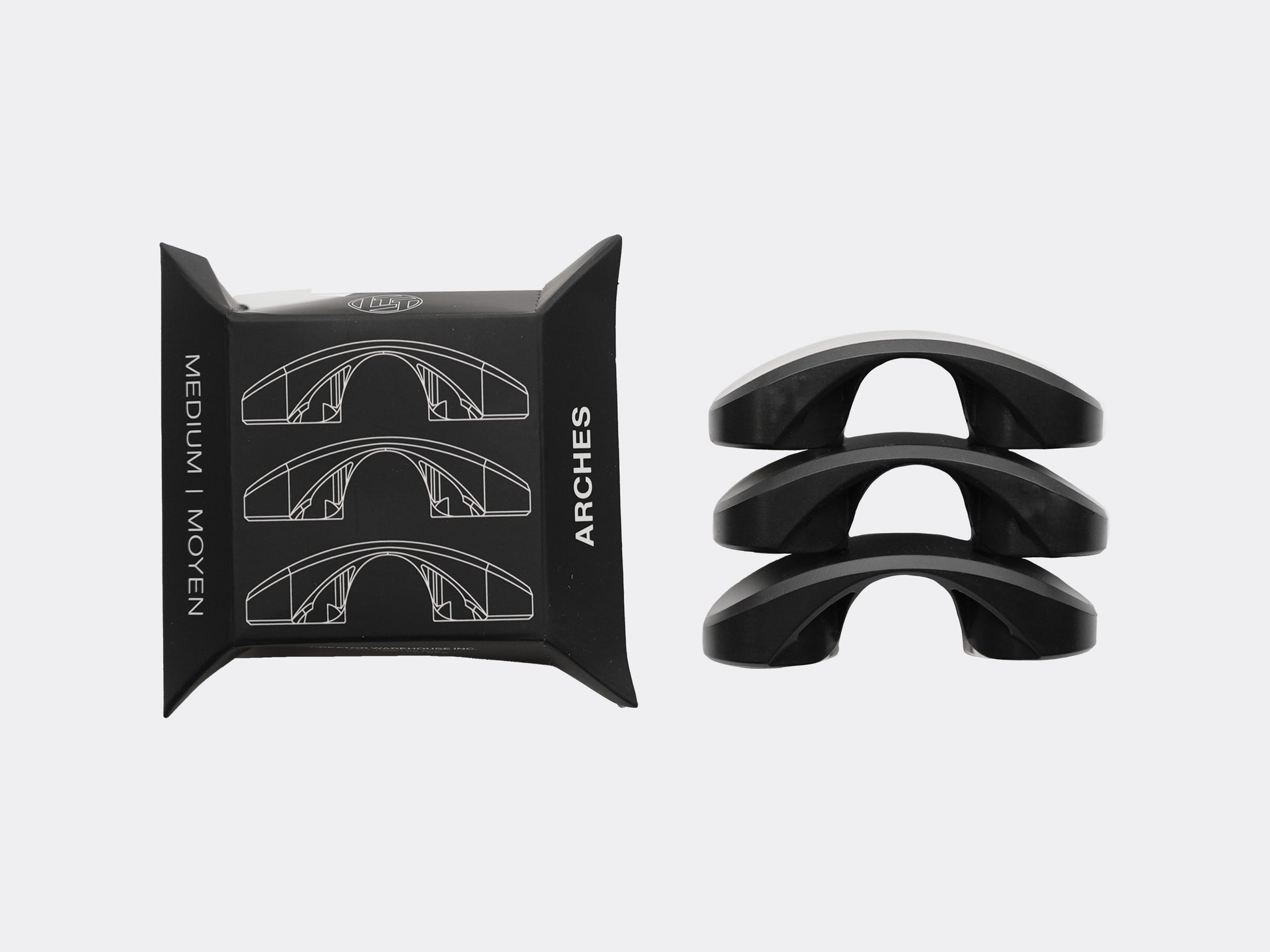

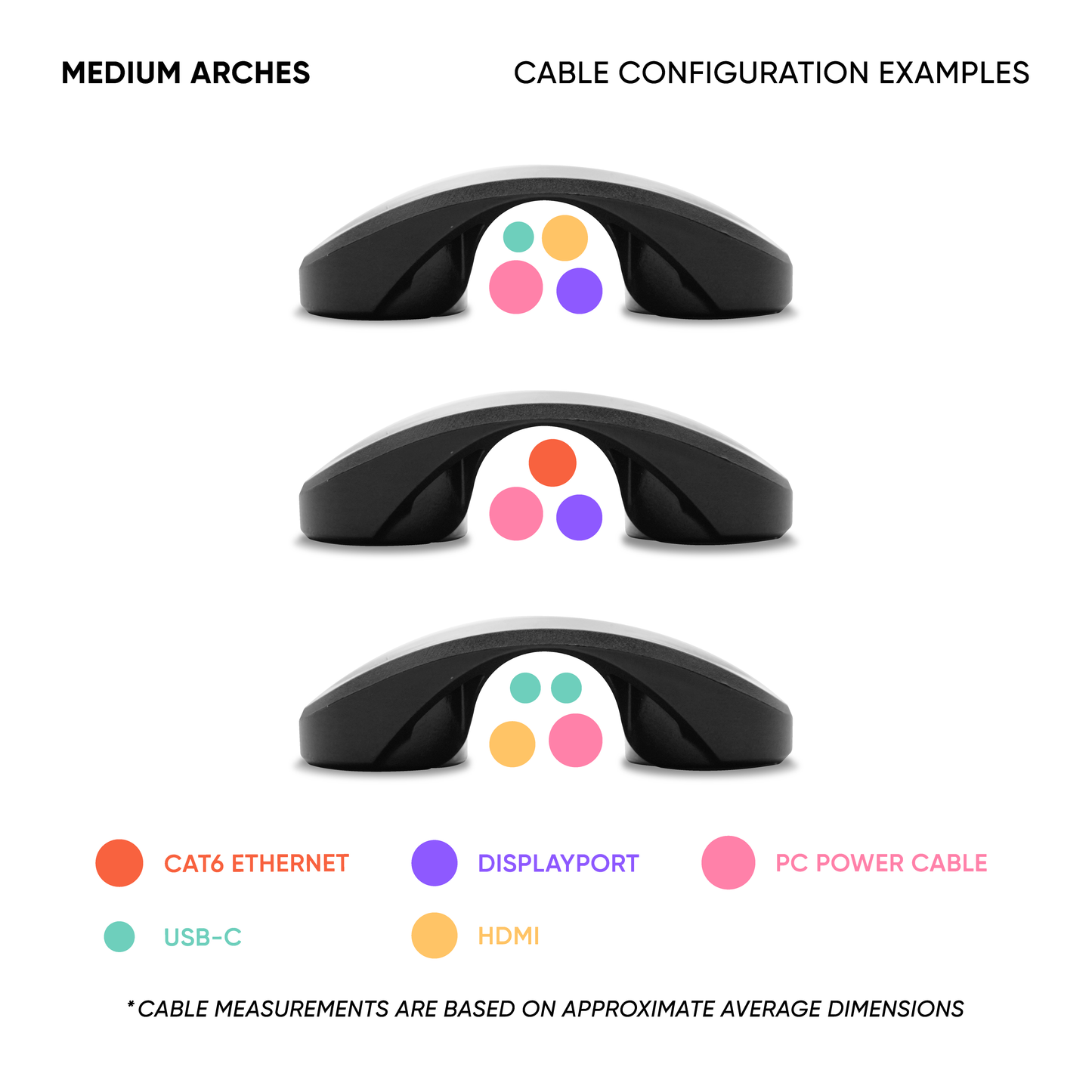

Medium Arches
- Includes 3 x Medium Magnetic Arches
- A single Medium Arch can hold approximately 12x USB-C cables (4.8mm diameter) or 2x 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Medium Arch can support approximately 1.0kg/2.2lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

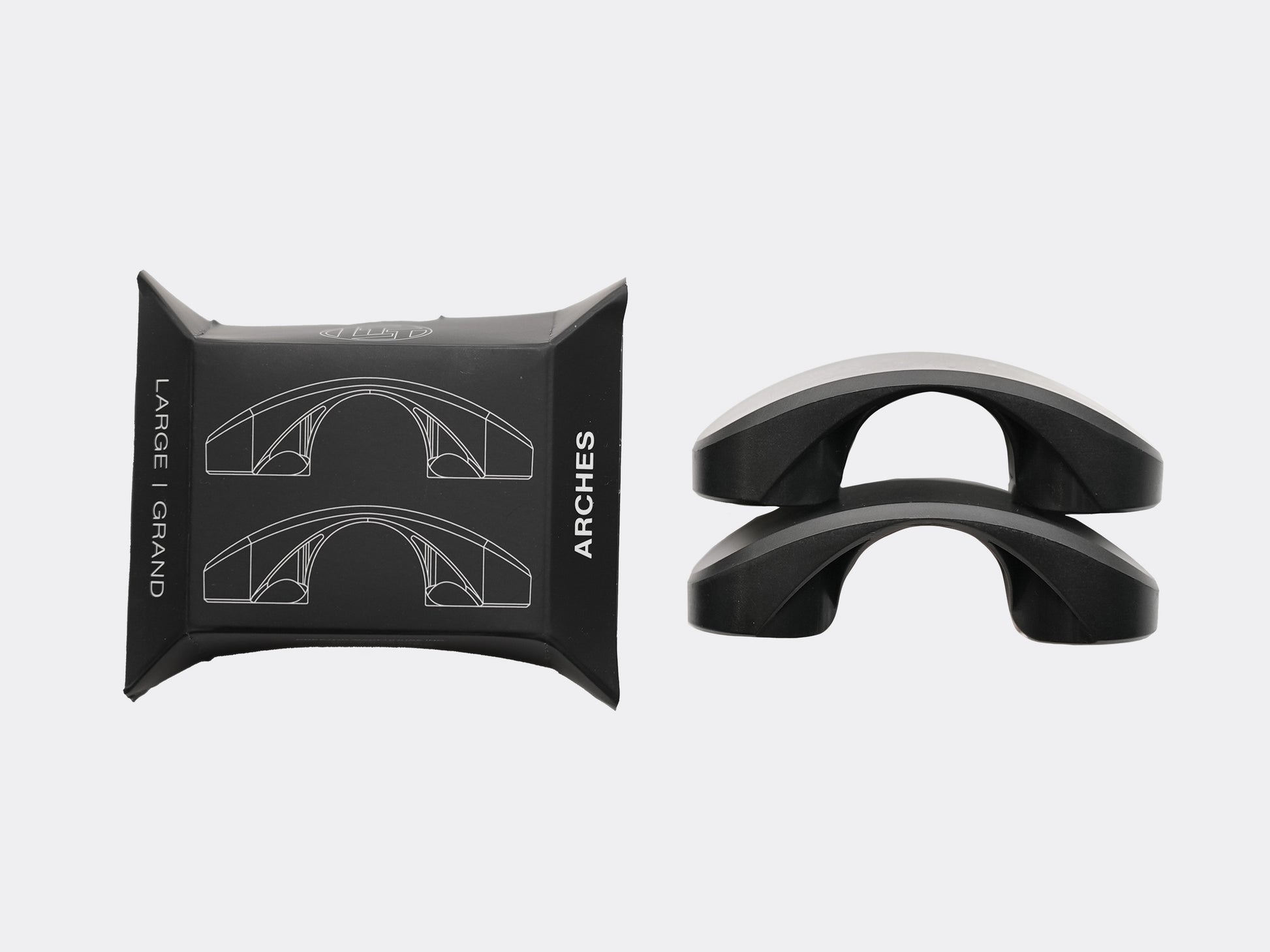

Large Arches
- Includes 2 x Large Magnetic Arches

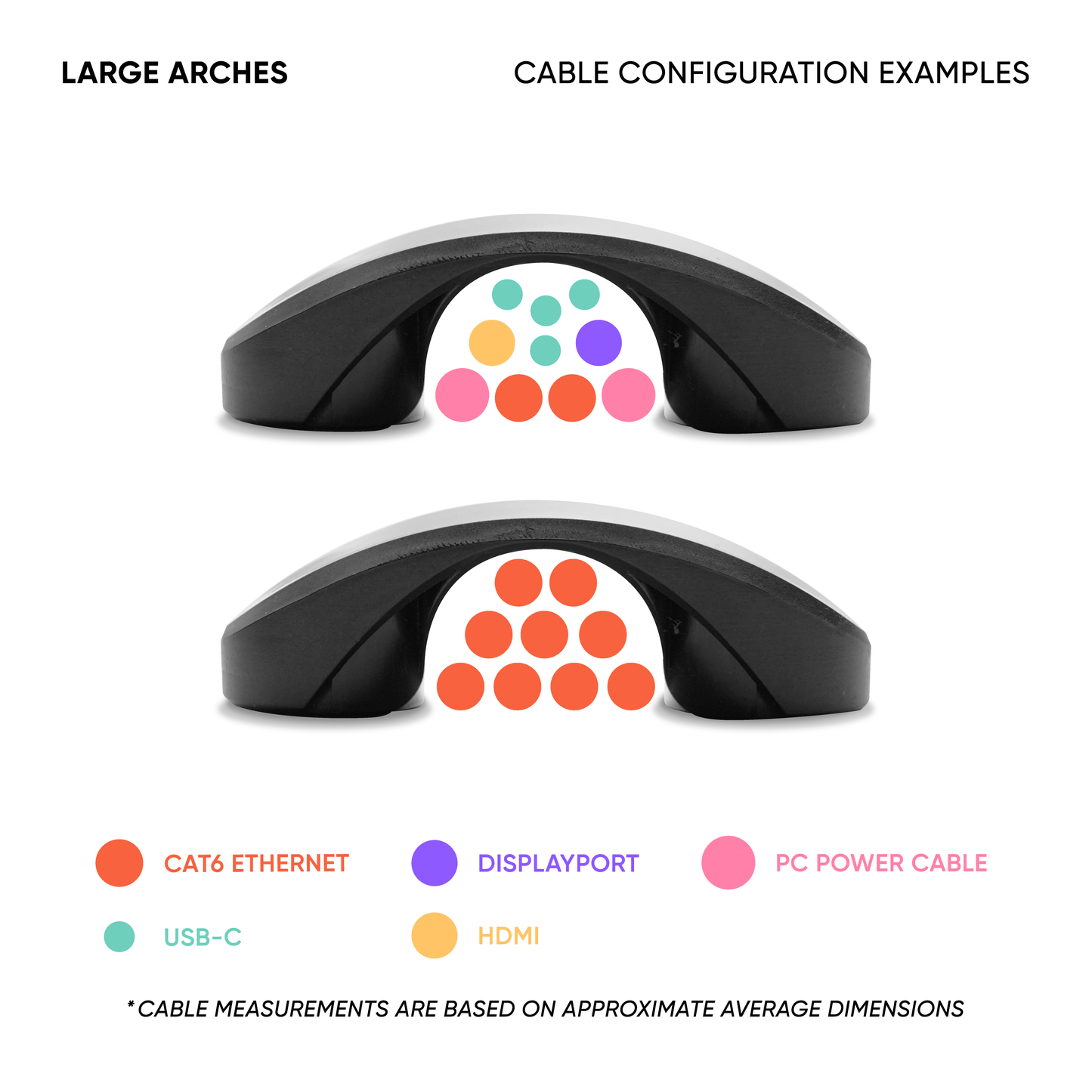

- A single Large Arch can hold approximately 22x USB-C cables (4.8mm diameter) or 5x 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each Large Arch can support approximately 2.4kg/5.3lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plates with screws

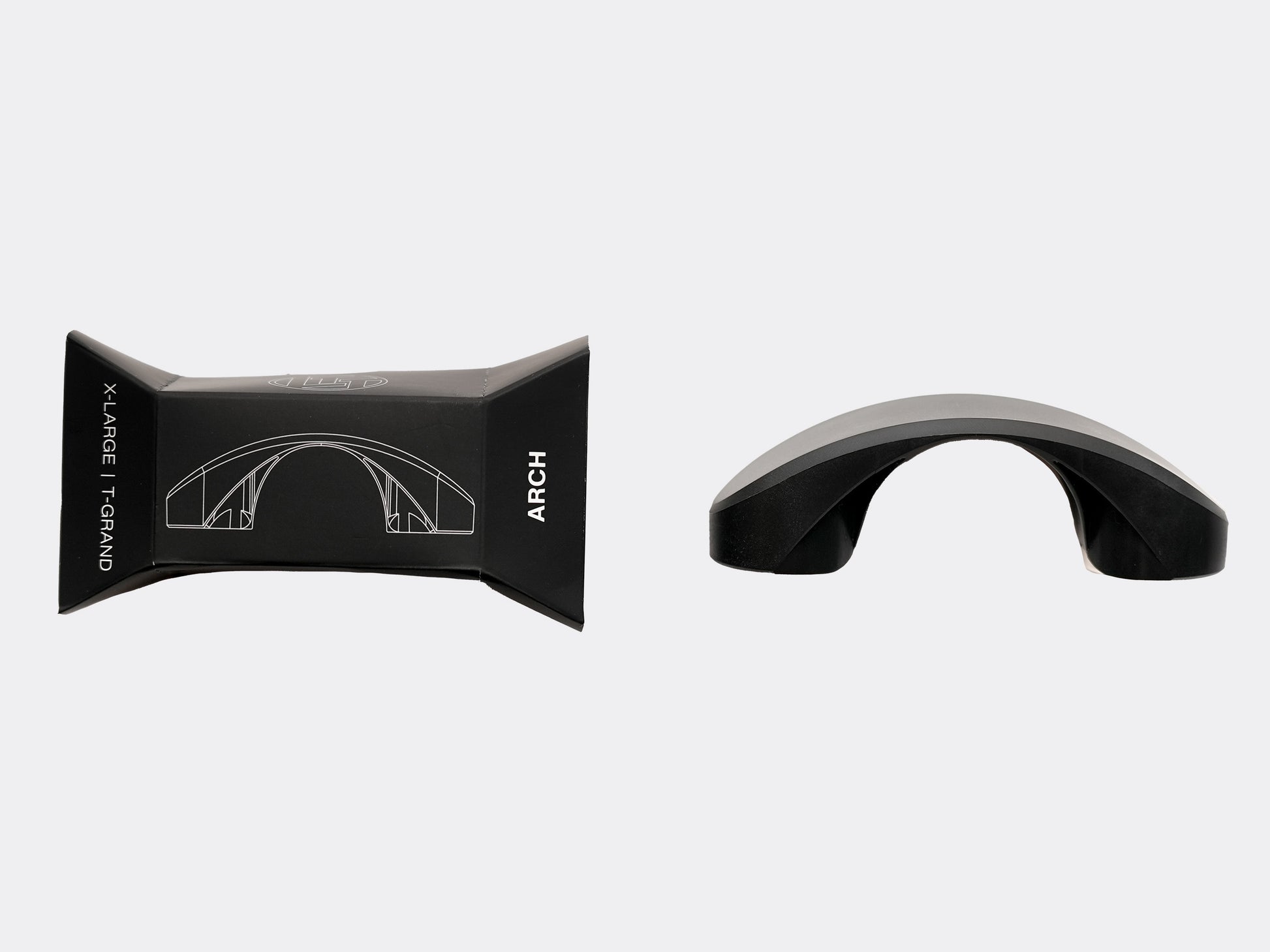

X-Large Arch
- Includes 1 x X-Large Magnetic Arch

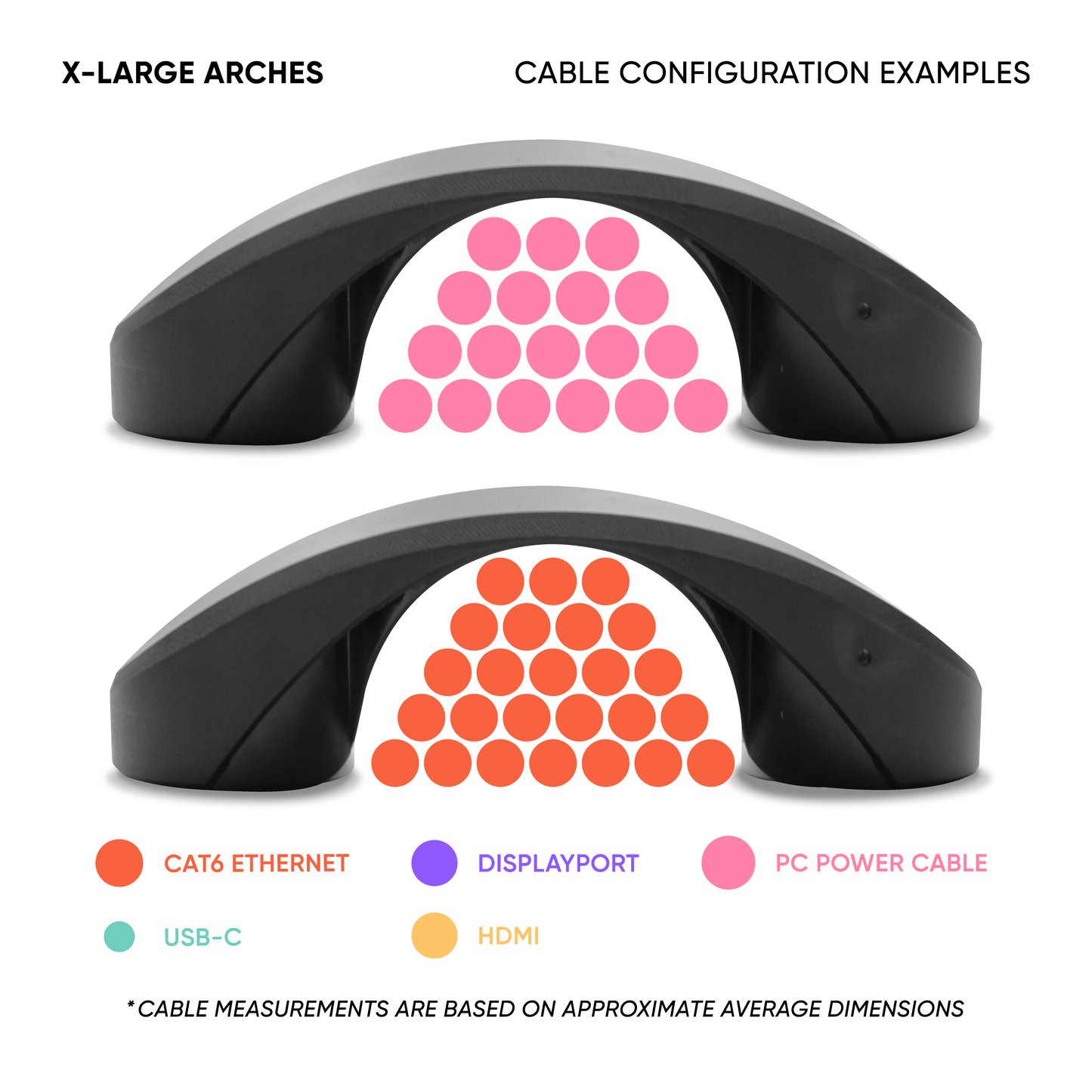

- A single X-Large Arch can hold approximately 55 USB-C cables (4.8mm diameter) or 12 20A power cables (10mm diameter)
- When mounted vertically (on a wall or server rack), each X-Large Arch can support approximately 2.8kg/6.2lbs. For additional support, check out the Silicone Grips down below, as in our testing they can increase the amount of vertical weight that each arch can support by 50%
- Comes with Crown #512 adhesive Magnetic plate with screws
Please note: VHB Magnetic plates and
Silicone grips for the magnetic plates are sold separately. See "Related Products" below.
Size Guide
Medium Arch: 6.4cm w X 2.8cm d X 1.8cm h
Large Arch: 8.5cm w X 3.5cm d X 2.5cm h
X-Large Arch: 11.5cm w X 4.5cm d X 3.6cm h
